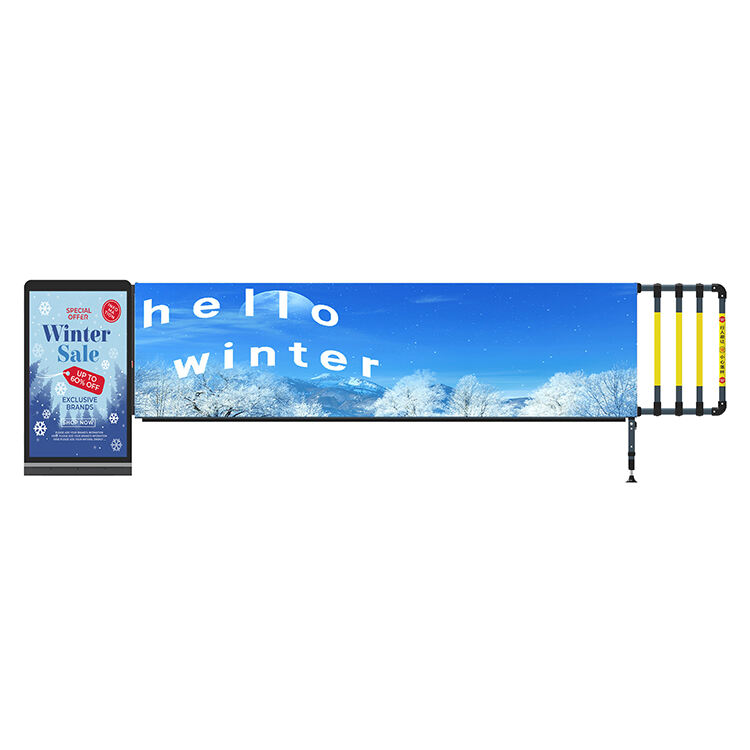

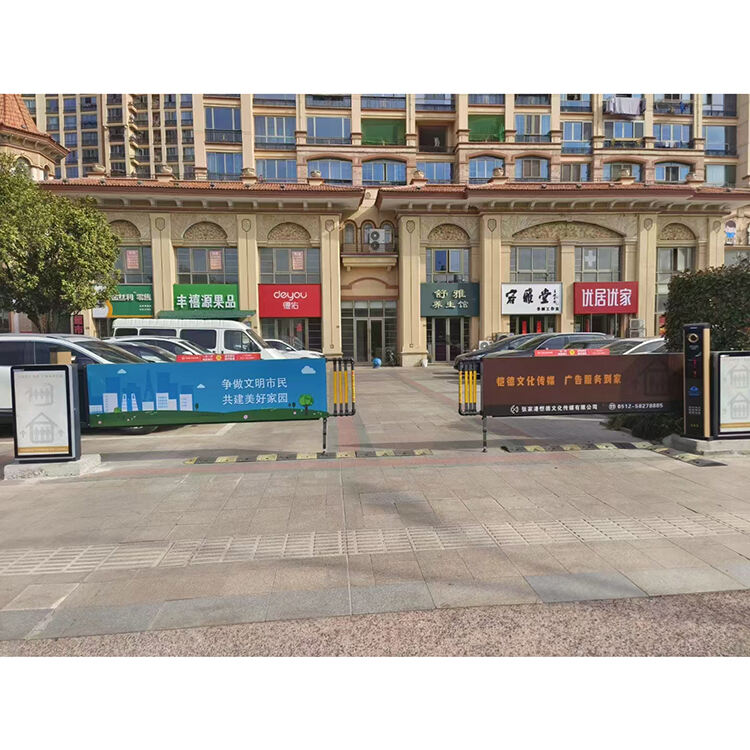

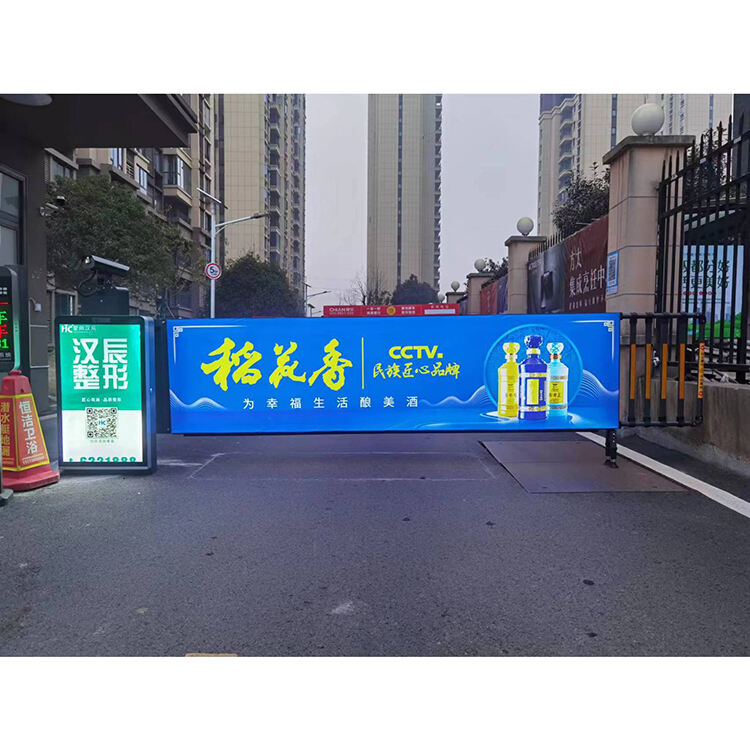

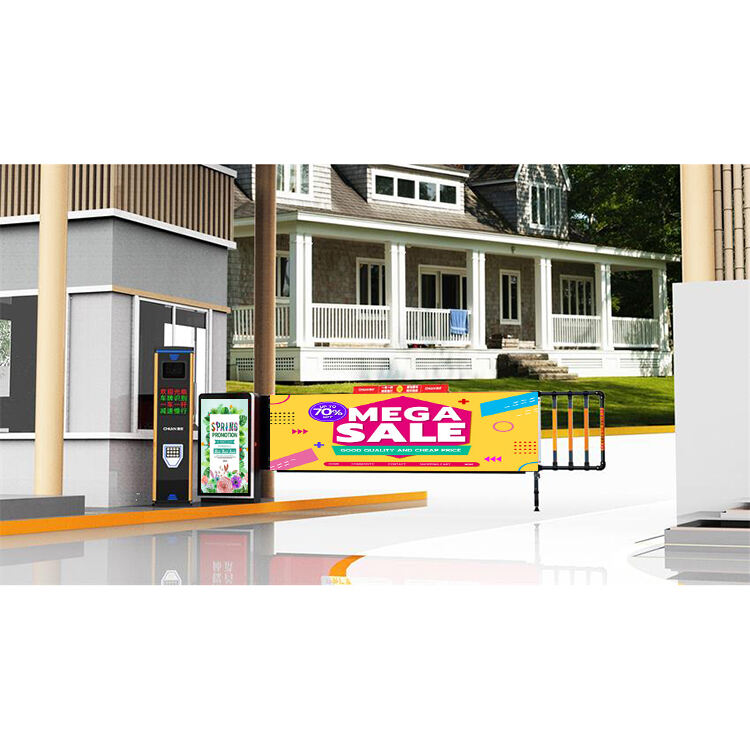

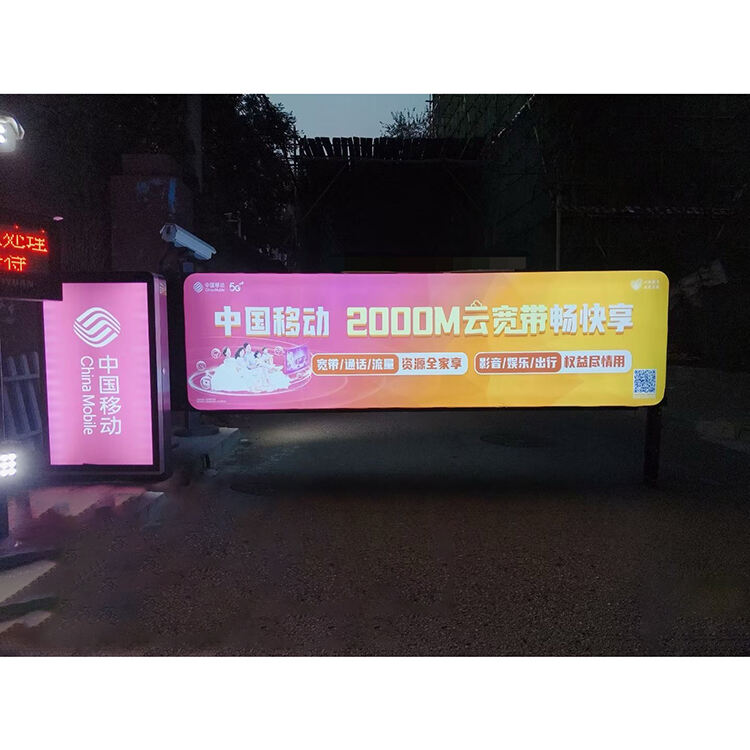

Combining commercial display and traffic control to enhance property advertising revenue, it is very suitable for use in shopping malls, office buildings, and residential areas.
| Place of Origin: | Shenzhen .China |
| Brand Name: | Chi'an |
| Model Number: | 119 |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton Package |
| Payment Terms: | Received 50% deposit, arranged production, and paid the remaining amount before delivery |
| Supply Ability: | 50 units/day |
1. The advertising screen has a 100% light transmission rate, with uniform and soft light transmission, no glare, no ghosting, and no borders. The gate rod is lightweight, the assembly speed is fast, and the advertising placement speed is fast, without affecting the normal operation of the barrier gate.
2. It adopts low-voltage 12V waterproof light strips, which are weather resistant and wind resistant. In the event of a typhoon, the Kabu advertisement can be disassembled without affecting the normal operation of the barrier gate during the disassembly process.
3. It comes with a rebound function when encountering obstacles, and when used in conjunction with ground sensing, it has a higher safety factor, effectively reducing losses caused by accidents.
4. Adopting high brightness waterproof LED light strips, intelligently controlling the lighting time according to weather conditions, energy-saving, efficient and intelligent.
5. The tail of the light box adopts a circular telescopic rod windproof design, which has the minimum wind resistance and can freely shrink the rod according to its width Length, no need for on-site cutting, flexible to adapt to different road widths, easy and fast to use and install.
6. Adopting a Variable frequency motor， the speed of the lifting and lowering rod can be adjusted, the brake rod runs smoothly and operates at low noise, and the sound absorption of the alarm is small,safe and reliable operation.
| Technical parameters of D119 | |
| Input Voltage | AC220V±10%, 50HZ |
| Motor parameters | AC220V, 200W(Inverter motor) |
| Motor structure | Split type turbine reducer |
| Speed range | 4-6S adjustable |
| Remote Control distance | ≤30meters/430M (Encryption anti-interference) |
| Interface Signal | on-off signal |

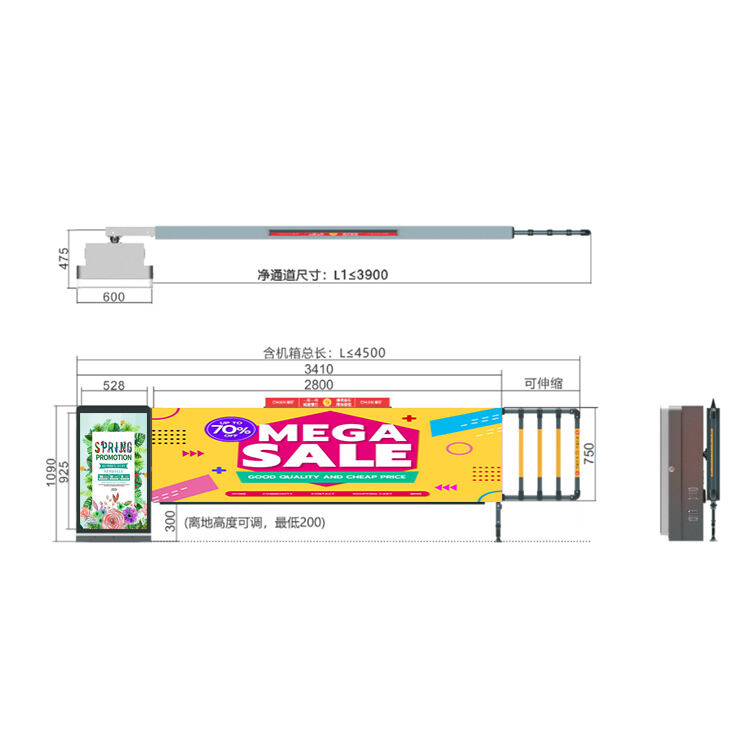

| Specification parameters of D119 | |
| Chassis size | 600*336*1090MM |
| Display size of chassis screen | 528*925MM |
| Print size of chassis screen | 568*965MM(Outdoor lamp film) |
| Display size of the banner | 750*2800MM |
| Print size of the banner | 735*2785(UV soft film,Size including seam edge) |
| maximum length | ≤4500MM |
Other Names
Advertising barrier gate/Barrier gate/ Obstacle gate /Fence gate / Barrier gate with fence / Car stopper / Railing machine /Vehicle Park Lot /LED barrier gate /Parking lot barrier gate/Fence rod /Vehicle access control system/LED Ad Gate/ Advertising Gate/ Digital Advertising Barrier /Smart Ad Gate/Promotional Access Barrier/Advertising Bollard Gate/Digital Advertisement Portal/Traffic Ad Gate
Purpose
①：Advertising barrier gate is an intelligent device that combines the basic functions of barrier gate with advertising display, widely used in parking lots, residential areas, commercial complexes and other places. It not only has the core function of vehicle control, but also creates additional commercial value through advertising display
②：Vehicle access management: As the core function of the barrier gate, the advertising barrier gate controls vehicle passage through license plate recognition, Bluetooth sensing, or RFID technology to ensure order and safety in the venue. For example:
a, Commercial parking lot: achieve automatic billing and release.
b, Residential communities: restrict the entry of foreign vehicles.
c, Industrial park: Manage internal vehicle permissions.
③：Advertising Information Display
a, The crossbar, box or two side columns of the barrier gate can be equipped with LED screens, light boxes or digital display screens for displaying:
b, Commercial advertising: brand promotion, promotional activities.
c, Public welfare promotion: policies and regulations, public safety tips.
d, Location guidance: parking lot vacancy information, merchant navigation.
e, data collection and analysis：Some intelligent barriers can collect data such as traffic flow and user stay time to assist operators in optimizing management strategies or advertising effectiveness.
1. 13 Years of Manufacture
2. Reasonable Price
3. Top leading Manufacturer in China
4. ODM/OEM Services
5. Fast After-sales Response
6. Durable Quality
