Automatic Flap Barrier Turnstile Gate TD307

Overview

Place of Origin:	Shenzhen .China
Brand Name:	Chi’an
Model Number:	TD307 Flap Turnstile
Certification:	ISO9001
Minimum Order Quantity:	1
Packaging Details:	Carton Package
Payment Terms:	Received 50% deposit, arranged production, and paid the remaining amount before delivery
Supply Ability:	50 units/day

Product Description

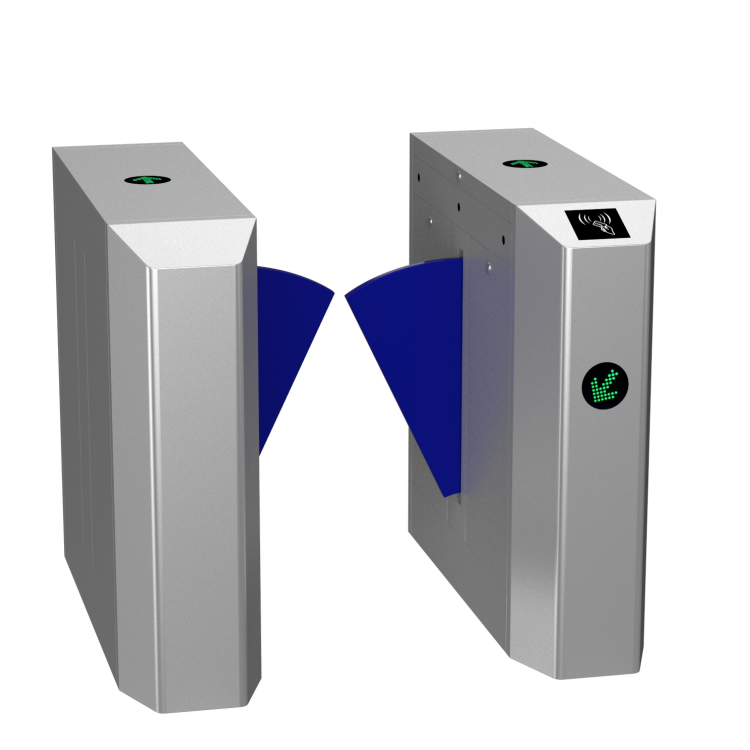

TD307 Automatic Flap Barrier Turnstile Gate

The CHIAN TD307 is an automatic flap barrier turnstile designed for pedestrian access control in office buildings, commercial facilities, transportation entrances and other managed pedestrian areas.

Featuring a 304 stainless steel cabinet and retractable acrylic wings, the TD307 combines a compact design with controlled pedestrian passage. Its infrared detection system helps monitor movement through the lane and supports safer, more organized access management.

Key Features

304 Stainless Steel Housing

The cabinet is constructed with 304 stainless steel, providing a durable structure and a professional appearance for pedestrian entrance installations.

Automatic Retractable Flap Wings

The motorized flap wings open to allow authorized passage and close after pedestrians have passed through the lane.

Infrared Safety Detection

Integrated infrared sensors monitor the passage area. The detection system supports anti-pinch protection and helps reduce the risk of the wings closing while a pedestrian is passing through.

Anti-Tailgating Detection

The turnstile supports anti-tailgating detection to help identify unauthorized passage attempts and improve entrance management.

Access Control System Integration

The TD307 can work with compatible external access control equipment, including RFID card readers, QR code readers and facial recognition terminals, depending on the selected system configuration.

Bidirectional Passage Management

The turnstile supports controlled pedestrian movement in both directions and can be configured according to project access requirements.

Typical Applications

Office buildings and corporate headquarters
Commercial buildings and business centers
Metro and transportation entrances
Educational facilities and campus entrances
Exhibition centers and public facilities
Managed pedestrian access control projects

Product Highlights

Model: TD307
Product Type: Automatic Flap Barrier Turnstile
Cabinet Material: 304 Stainless Steel
Wing Material: Acrylic
Safety System: Infrared Detection
Passage Control: Bidirectional
Integration: Compatible External Access Control Systems

Project Support and Customization

CHIAN provides pedestrian access control equipment for commercial and project-based installations.

Contact our team to discuss passage width, access control integration, installation requirements and available configurations for your project.

Request a Quote

Looking for an automatic flap barrier turnstile for your entrance control project? Send CHIAN your required quantity, installation location and access control requirements to receive product information and a quotation.

Specifications

Flap Turnstile	TD307

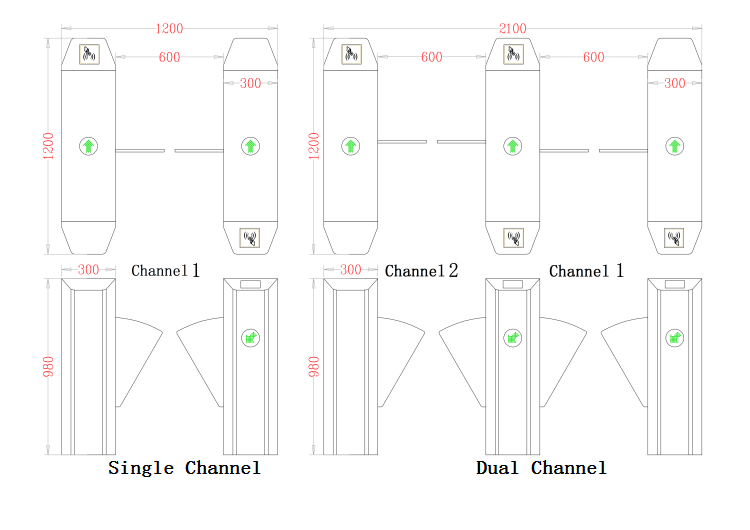

Dimensions	1200mm * 300mm * 980mm
Material	304 stainless steel material, national standard 1.2mm cover, 0.8mm body;
Length of the Gate Arm	≤ 600mm

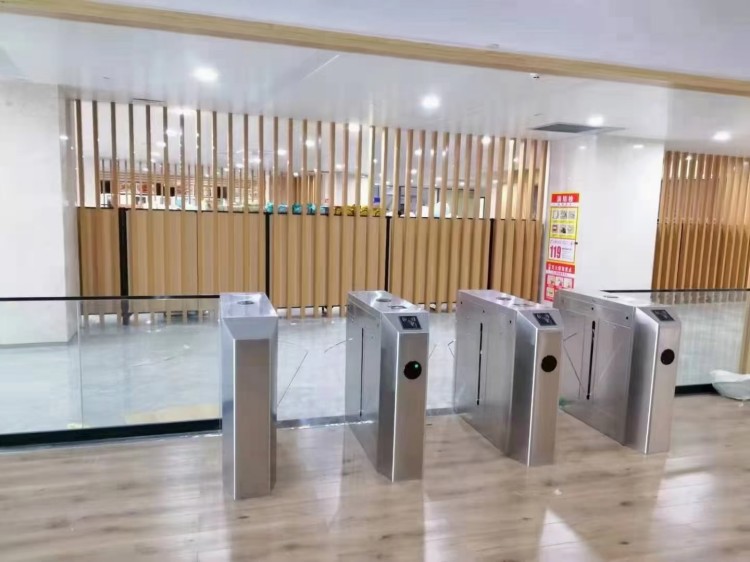

Door wing material	Acrylic (red, blue, transparent optional)
Physical interfaces	RS485, left open, right open, fire interface
Infrared detection pairs	4 pairs
Gate mechanism	semi-automatic three roller gate mechanism
Traffic speed	20-60 people/minute, actual traffic speed is affected by personnel situation and traffic mode
Working environment	Indoor, outdoor;
Power supply voltage	AC220V ± 10%, 50/60Hz;
Working environment temperature	-20 ℃ to+70 ℃;
Relative humidity	Relative humidity ≤ 95%, non condensing
Input interface	12V level signal or 12V pulse signal with pulse width>100ms, driving current:>200mA
Communication interface	RS485 electrical standard;
Extended functions	Can be connected to external ID, IC card, fingerprint recognition,facial recognition, finger vein recognition, QR code recognition, ID card recognition, mobile app opening, human body comprehensive anti-static equipment, security checkpoint, visitor system, etc.

Matters Needing Attention

One of the main components of pedestrian walkway products is stainless steel, which has good rust resistance (ability to resist atmospheric oxidation) and corrosion resistance (ability to resist corrosion in media containing acid, alkali, and salt), but its corrosion resistance will change with its own chemical composition, usage environment, and other factors. In order to maintain the appearance and prolong the service life of stainless steel, regular maintenance and upkeep are necessary.The maintenance precautions are as follows:

1. Different specifications of stainless steel need to be selected for different usage environments. Generally, 304 stainless steel can be used, while 316 stainless steel is recommended for environments such as coastal areas and chemical plants.
2. Keep the surface of the product clean and dry.
When dirt appears on the surface of the product, non-woven fabric and alcohol can be used for cleaning.
When rust spots appear on the surface of the product, you can use a scouring pad (remember not to use a steel wire cleaning ball) to wipe back and forth along the pattern at the rust spot until it is removed, and then use non-woven fabric and stainless steel maintenance agent to wipe the entire area.
5. It is necessary to regularly wipe and maintain the entire gate with non-woven fabric and stainless steel maintenance agent. It is generally recommended to do it once a month; If the environment is harsh (such as by the sea, chemical plants, etc.), it is recommended to do it once a week.
