304 Stainless Steel Pedestrian Speed Gate with Acrylic Swing Arms, Infrared Safety Sensors and Support for External RFID, QR Code and Face Recognition Systems.
Place of Origin: |
Shenzhen .China |
Brand Name: |
Chi’an |
Model Number: |
TD203-12 Speed Gate Turnstile |
Certification: |
ISO9001 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Carton Package |
Payment Terms: |
Received 50% deposit, arranged production, and paid the remaining amount before delivery |
Supply Ability: |
50 units/day |

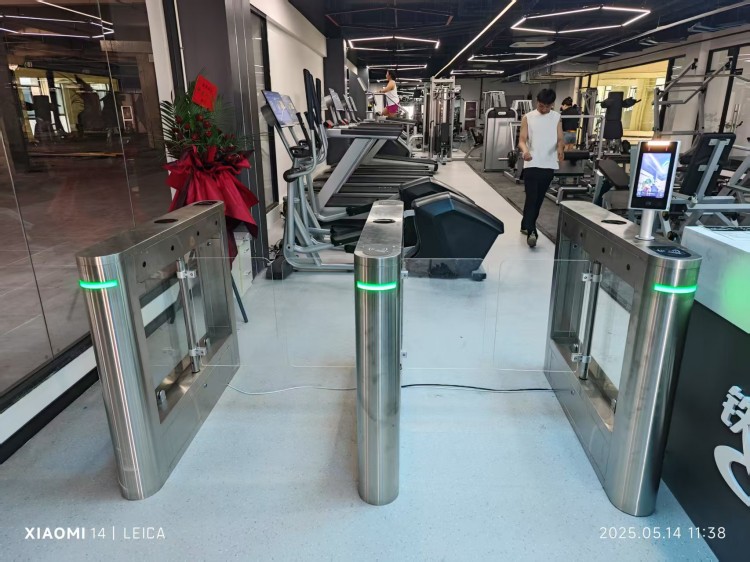

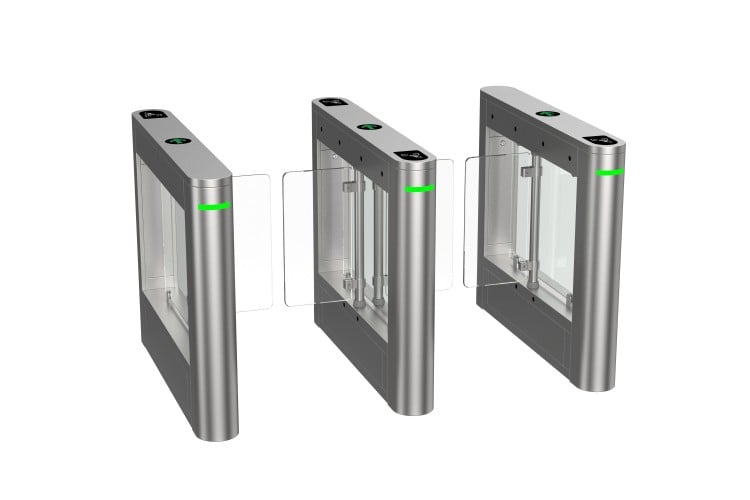

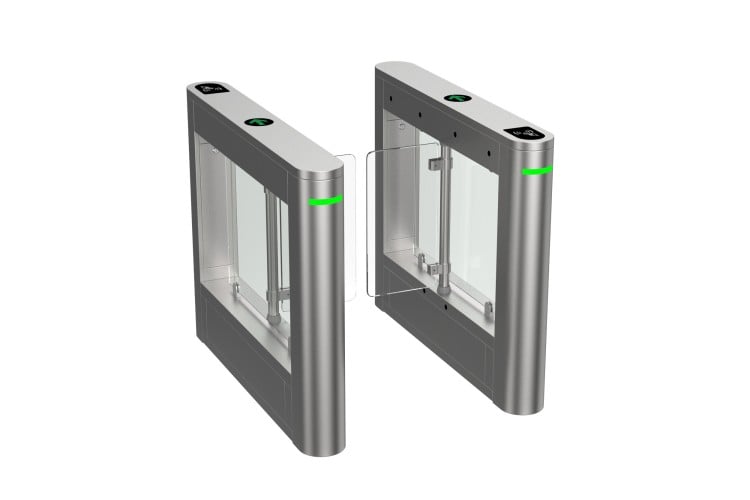

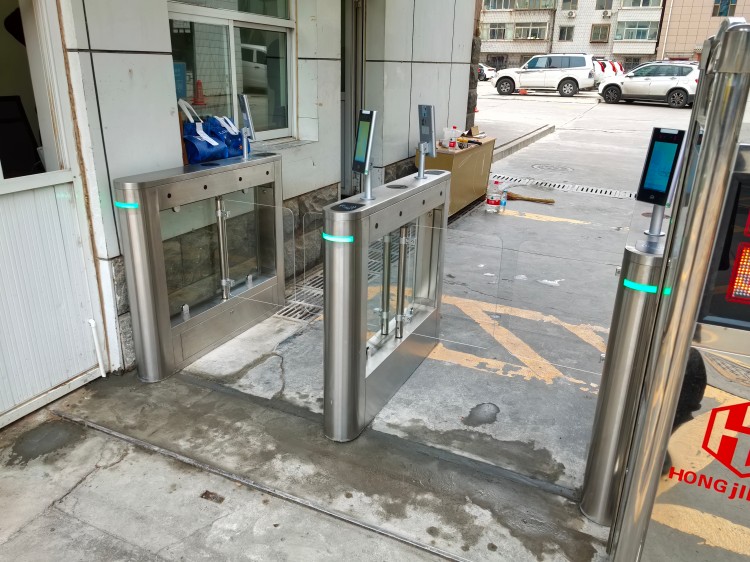

The CHIAN TD203-12 is an automatic swing speed gate turnstile designed for controlled pedestrian entrances in office buildings, commercial facilities, transportation-related projects and other access-managed environments.
304 Stainless Steel Housing
Durable stainless steel cabinet for indoor and outdoor pedestrian entrances.
Fast Pedestrian Throughput
Supports approximately 20–60 persons per minute depending on access configuration.
Multi-Layer Anti-Pinch Protection
Five pairs of infrared sensors monitor the passage area to improve pedestrian safety.
Flexible Access Control Integration
Supports RFID card, QR code, face recognition and other access control devices.
RS485 Communication
Designed for integration with access controllers and pedestrian management systems.
Bidirectional Passage Control
Supports configurable entry and exit directions for different access scenarios.
|
Speed Gate Turnstile |
TD203-12（Acrylic Arm） |
|

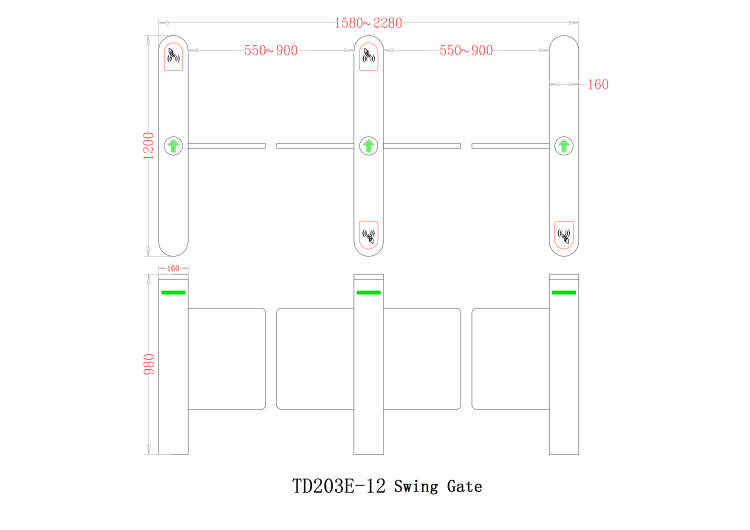

Dimensions |
1200mm * 160mm * 980mm |
|
Material |
304 stainless steel material, national standard 1.2mm cover, 0.8mm body; |
|
Length of the Gate Arm |
≤ 550-900mm |
|
Door wing material |
Acrylic or U-shaped stainless steel pipe |
|
Physical interfaces |
RS485, left open, right open, fire interface |
|
Infrared detection pairs |
4 pairs |
|
Traffic speed |
20-60 people/minute, actual traffic speed is affected by personnel situation and traffic mode |
|
Working environment |
Indoor, outdoor; |
|
Power supply voltage |
AC220V ± 10%, 50/60Hz; |
|
Working environment temperature |
-20 ℃ to+70 ℃; |
|
Relative humidity |
Relative humidity ≤ 95%, non condensing |
|
Input interface |
12V level signal or 12V pulse signal with pulse width>100ms, driving current:>200mA |
|
Communication interface |
RS485 electrical standard; |
|
Extended functions |
Can be connected to external ID, IC card, fingerprint recognition,facial recognition, finger vein recognition, QR code recognition, ID card recognition, mobile app opening, human body comprehensive anti-static equipment, security checkpoint, visitor system, etc. |
Ensure the installation surface is level and stable.
Keep the gate area free from standing water.
Disconnect power before maintenance.
Inspect moving parts and sensors periodically.
Contact CHIAN for technical support when required.
