Chi'an—Leading intelligent Entrance and Exit Management Equipment for Pedestrian and Vehicles Manufacturer& Supplier

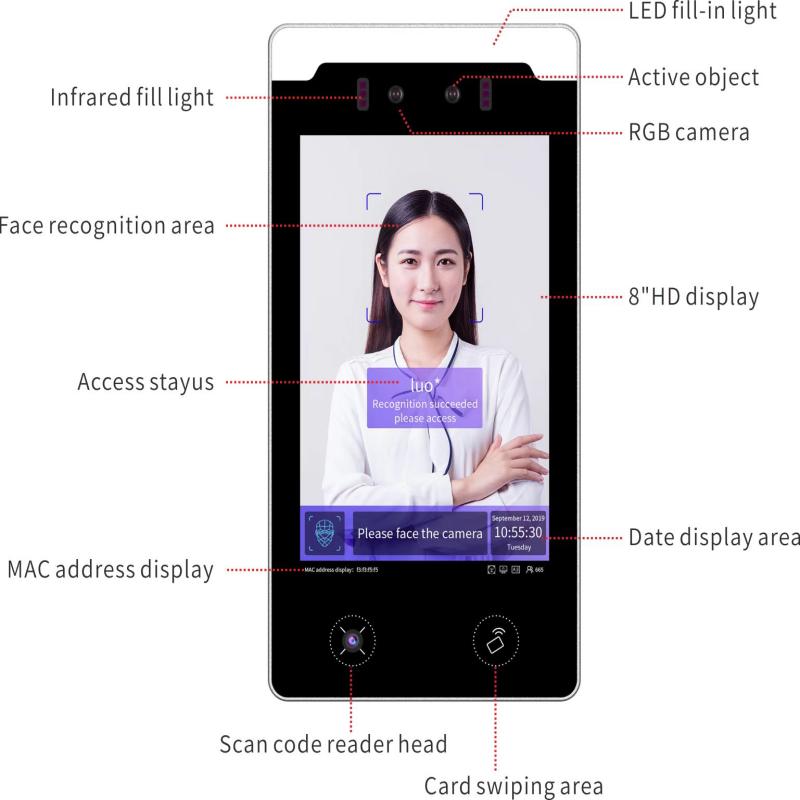

The terminal integrates the functions of off-line face recognition, identity verification, on-site face collection, blacklist early-warning, photo taken after passing, active object detection. It adopts WDR HD face recognition camera, which is fully adapted to harsh environment such as strong light, back light and weak light, with characteristics of fast recognition speed, high accuracy and large list storage capacity.
Place of Origin: |
Shenzhen .China |
Brand Name: |
Chi’an |
Model Number: |
TD203-12 Speed Gate Turnstile |
Certification: |
ISO9001 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Carton Package |
Payment Terms: |
Received 50% deposit, arranged production, and paid the remaining amount before delivery |
Supply Ability: |
50 units/day |
Product model |
608B |
|
Basic parameters |
Installation scenarios |
Wall installation |
Operating temperature and humidity |
-10ºC to 55ºC, <90ºC RH |
|
Protection level |
IP55 |
|

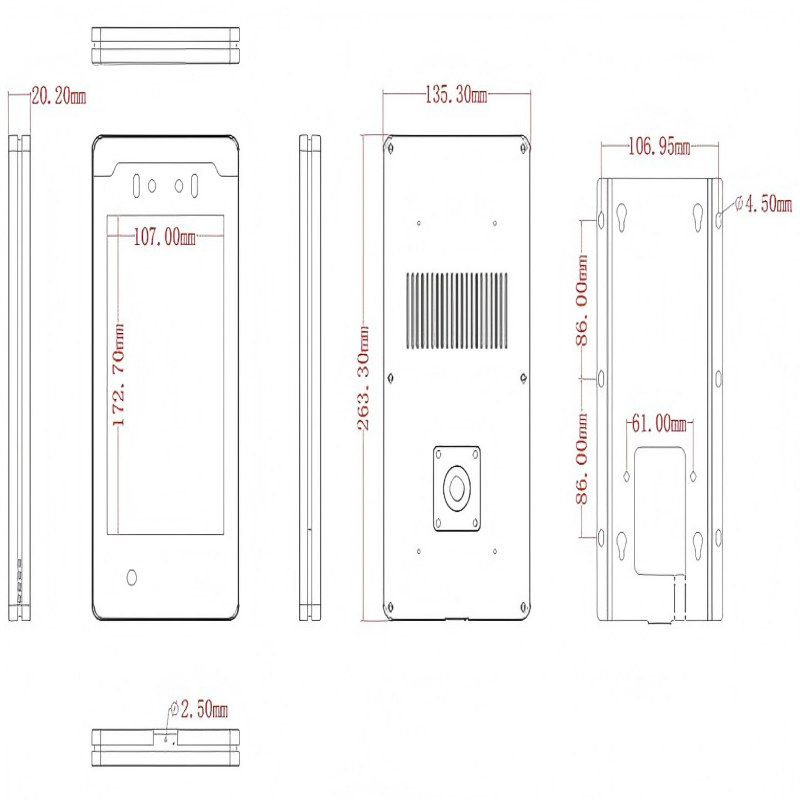

Dimensions |
263.3*135.3*20.2mm(Height*Width*Thickness) |
|
Material |
Aluminum alloy |
|
System parameters |
System |
Embedded Linux system |
CPU |
ARM-based processors |
|
Storage |
Internal storage 1GB, data storage 8GB |
|
Display screen |
8’’ HD IPS LCD with resolution of 800*1280 |
|
Lens focus |
4.5mm |
|
Camera |
Binocular camera, 200W pixels with WDR |
|
Recognition performance |
Recognition distance |
0.3-3m |
Recognition time |
Less than 0.2s |
|
Storage capacity of face database |
1: N, N≤50000 |
|
Accuracy |
≥99.7% |
|
Peripheral interface |
Power interface |
1 x DC12V |
USB interface |
1x USB2.0 |
|
Relay output |
1 x on-off output |
|
RJ45 cable interface |
1 x RJ45 Internet access |
|
Wiegand output interface |
1 x WG output |
|
IO input |
1 x IO input |
