Advertising doors can not only be used for passage, but also for posting advertisements on them. They support card swiping, facial recognition, and QR code access, and are suitable for various scenarios such as residential communities, enterprises and institutions, factory gates, etc.
| Place of Origin: | Shenzhen .China |
| Brand Name: | Chi'an |
| Model Number: | M330 |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton Package |
| Payment Terms: | Received 50% deposit, arranged production, and paid the remaining amount before delivery |
| Supply Ability: | 50 units/day |
The CHIAN M330 is a motorized sliding pedestrian gate designed for controlled access at residential communities, commercial properties and managed pedestrian entrances.
Combining a metal fence-style sliding gate with an integrated advertising display, the M330 provides pedestrian entrance management and a dedicated space for displaying promotional or informational content.
Automatic Sliding Gate Operation
The sliding fence gate opens and closes through a motorized drive system, providing controlled pedestrian passage.
Integrated Advertising Display
The built-in display area can be used to present advertising, announcements or other visual information at the entrance.
Metal Fence-Style Construction
The gate features a metal frame and vertical grille structure suitable for designated pedestrian access points.
Adjustable Operating Speed
Opening and closing speed can be adjusted according to the available controller settings and project requirements.
Access Control Integration
The gate can be configured for connection with compatible external access control equipment, subject to the selected controller and interface options.
Before ordering, please confirm the required passage width, installation space, power supply, display requirements and preferred access control method.
Contact CHIAN with your project requirements for available configurations, technical information and quotation support.

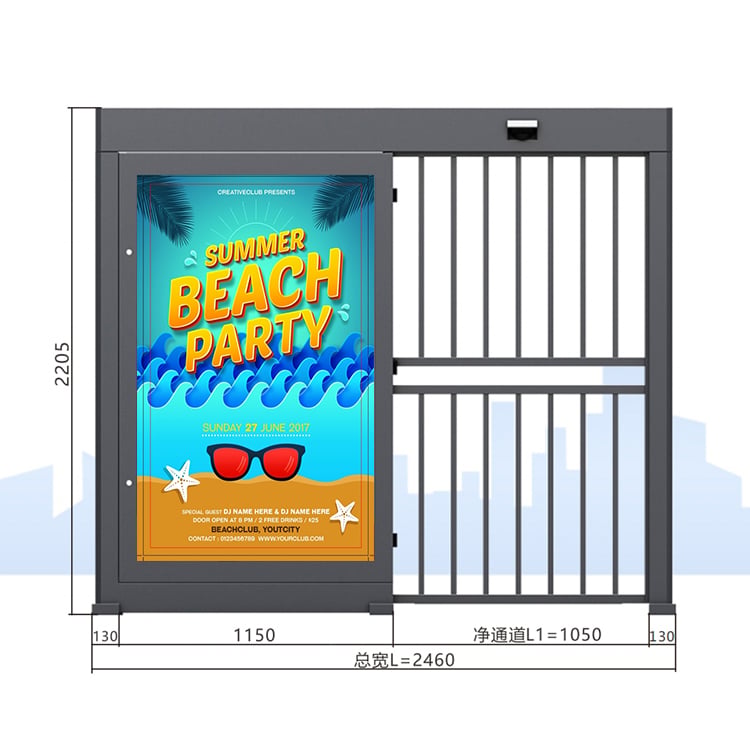

| Technical Parameter of 330 | |
| Dimensions | Length 2500 * Width 365 * Height 2200MM |
| Passage size | Width 1100 * Height 2000MM |
| Advertisement display size | Length 1662 * Width 1018MM |
| Door opening method | sliding (trackless fence gate) |
| Input voltage | AC220V, 50HZ//DC24V |
| Working temperature | -35℃~75℃ |
| Working humidity | 30% -90% |
| Control output power | 100W |
| Motor | DC24V (brushless motor) |
| Motor torque | 180KG |
| Gate opening and closing speed | 15-46S (adjustable) |
| Remote control distance | <15M |
Other Names
Automatic Sliding Pedestrian Gate / Pedestrian Advertising Gate / Sliding Advertising Gate / Automatic Advertising Gate / Digital Advertising Pedestrian Gate / Pedestrian Access Control Gate / Motorized Sliding Gate / Sliding Fence Gate / Advertising Display Gate / Smart Pedestrian Access Gate / Residential Pedestrian Gate / Commercial Entrance Gate / Pedestrian Entrance Gate / Integrated Advertising Gate / Trackless Sliding Pedestrian Gate
Purpose
① Brand exposure and promotion
a, Dynamic advertising display: By rotating brand advertisements through digital posters (such as smart advertising doors at mall entrances), directly reach audiences in high traffic areas.
b, Precise advertising: Combining facial recognition or big data analysis, display differentiated advertisements for different time periods and audiences (such as coffee ads pushed to office building advertising doors during the morning rush hour).
Scenario based marketing tools
c, Event diversion: In exhibition, scenic spots and other scenes, advertising doors serve as both entrance guidance and event promotion functions (such as the sponsor advertising doors at the venues of the 2025 Hangzhou Asian Games).
d, Commercial space beautification
Replace traditional iron gates or fences and enhance the technological and aesthetic value of commercial complexes, hotels, and other places through customized design (such as holographic projection doors).
② Economic value
a, Advertising revenue: Obtain sustained income through leasing advertising spaces (such as annual revenue of 100000 to 300000 yuan/unit for community express cabinet advertising doors).
b, Cost savings: Integrate security and promotional functions to reduce the cost of installing separate billboards and access control systems (such as Vanke Property's "Integrated Community Door" solution).
③ Value of Data
a, Traffic statistics: Built in sensors can count foot traffic and duration of stay, providing data support for advertising effectiveness evaluation (such as the advertising door analysis system of Tmall Smart Store).
b, User profiling: Combining AI cameras to analyze audience characteristics such as gender and age, optimize advertising strategies (subject to compliance with privacy regulations).
④ Social Value
a, Public information dissemination: In emergency situations, it can be switched to public welfare notifications (such as typhoon warnings and epidemic prevention guidelines) to improve public safety efficiency.
b, Upgrading urban image: Landmark advertising doors (such as the "Light and Shadow Art Gate" on the Bund in Shanghai) have become the cultural calling cards of the city.
