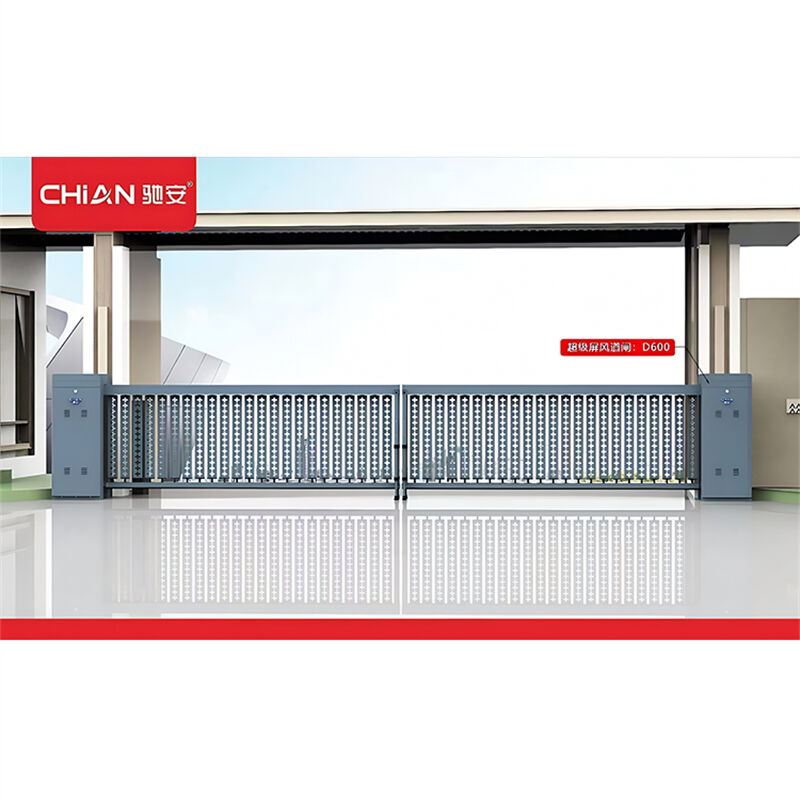

Extra long barrier gate: designed with heavy-duty poles and raised fences to meet special needs in places such as logistics parks and ports, preventing climbing
| Place of Origin: | Shenzhen .China |
| Brand Name: | Chi'an |
| Model Number: | D600 |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton Package |
| Payment Terms: | Received 50% deposit, arranged production, and paid the remaining amount before delivery |
| Supply Ability: | 30 units/day |
1. Double sided chassis design ,"high-end, powerful, and upscale" , Double sided chassis，The unique carved pattern of the vertical fence has artistic beauty.
2. The chassis sheet metal is bent and welded into shape, and is treated with outdoor powder spraying, which is sturdy and durable.
3. The chassis adopts a double-sided design, with the pole rising and falling in the middle of the chassis, regardless of left or right direction.
4.Adopting a reinforced four link transmission structure, a 400W high-power bipolar reduction motor with high transmission efficiency and smooth operation.
5. Adopting multiple springs to balance the tension design, making the lifting and lowering of the gate rod more stable and extending the service life of the springs.
6. Multiple control methods, optional external control box buttons for manual lifting, lowering, and stopping of the barrier gate control, or remote control device can be selected.
7. Ground sensing anti smashing function, The rod automatically descends after the vehicle passes by, Automatically lift the rod when the vehicle passes by, enabling the gate to have automatic closing and anti smashing function.
| Technical parameters of D600 | |
| Input Voltage | AC220V±10%, 50HZ |
| Motor parameters | AC220V, 400W(Inverter motor) |
| Motor structure | Reinforced turbine worm gear reduction motor |
| Speed range | 8-10S adjustable |
| Remote Control distance | ≤30meters/430M (Encryption anti-interference) |
| Interface Signal | on-off signal |
| Specification parameters of D600 | |

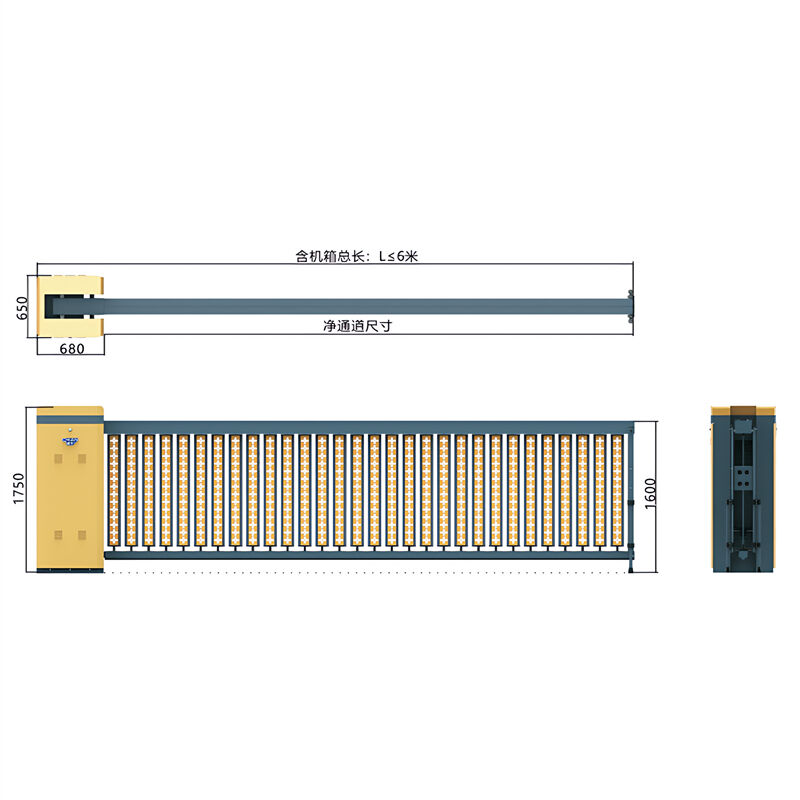

| Chassis size | 680*650*1750 MM |
| Chassis characteristic | Double sided chassis |
| Types of the rod | D600 |
| Height above the ground | 1600MM |
| Distance between vertical bars of the fence | 40 MM |
| maximum length | ≤6000MM |
Other Names
Fence gate / barrier gate with fence / Car stopper / Railing machine /Vehicle Park Lot /LED barrier gate /Parking lot barrier gate/fence rod /vehicle access control system
The function of installing it
1.Controlling the entry and exit of vehicles in the parking lot: This is the most basic function of a barrier gate, which allows or prevents vehicles from entering or leaving the parking lot by controlling the lifting and lowering of the gate rod.
2. Managing pedestrian walkways: In some occasions, such as office buildings, residential areas, hospitals, schools, etc., turnstiles can be used to manage pedestrian walkways by combining with access control systems to control the entry and exit of personnel.
3. Applied to special events: In special events such as conferences, exhibitions, etc., barriers can be used to control the entry and exit of personnel, improving the organizational efficiency of the event.
4. Advertising promotion: The advertising barrier supports screen printing to promote the brand, promote sales, and increase sales through screen advertising.
5. Security management: Barrier gates can be combined with license plate recognition systems, payment systems, etc. to improve the security and management efficiency of parking lots.
1. 13 Years of Manufacture
2. Reasonable Price
3. Top leading Manufacturer in China
4. ODM/OEM Services
5. Fast After-sales Response
6. Durable Quality
Shenzhen Chian, a company specializing in intelligent entrance/exit control, provides you with the best quality automatic gates and license plate recognition devices
