High precision brushless motor control, fast lift up and down, supporting license plate recognition and remote management, maximum length can reach 6meters,suitable for various scenarios such as residential areas and parking lots.
| Place of Origin: | Shenzhen .China |
| Brand Name: | Chi'an |
| Model Number: | 137Z (Barrier gate with fence) |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton Package |
| Payment Terms: | Received 50% deposit, arranged production, and paid the remaining amount before delivery |
| Supply Ability: | 50 units/day |
01. Decorate the chassis with LED light strips to enhance the product's fashion sense.
02. Installation of integrated gearbox, four-bar linkage transmission structure, bipolar reduction motor, high transmission efficiency, smooth operation. 03. 24V DC brushless control, precise control, smooth operation.
04. Multiple control methods are available, with the option to manually control the raising, lowering, and stopping of the barrier gate using external control box buttons, or to choose a remote control device.
5. Select the ground sensing anti smashing function, which automatically lowers the pole after the car is driven, and the falling pole is automatically lifted by the car, so that the gate has the function of automatic closing and anti smashing the car.
06. Priority function: In case of emergency during the descent of the gate, as long as the gate signal is received, the gate will immediately perform the opening action.
07. The barrier gate can be used for multiple purposes and can be equipped with various pole types such as telescopic poles, curved poles, and fence poles.
| Model number | 137Z (Barrier gate with fence) |

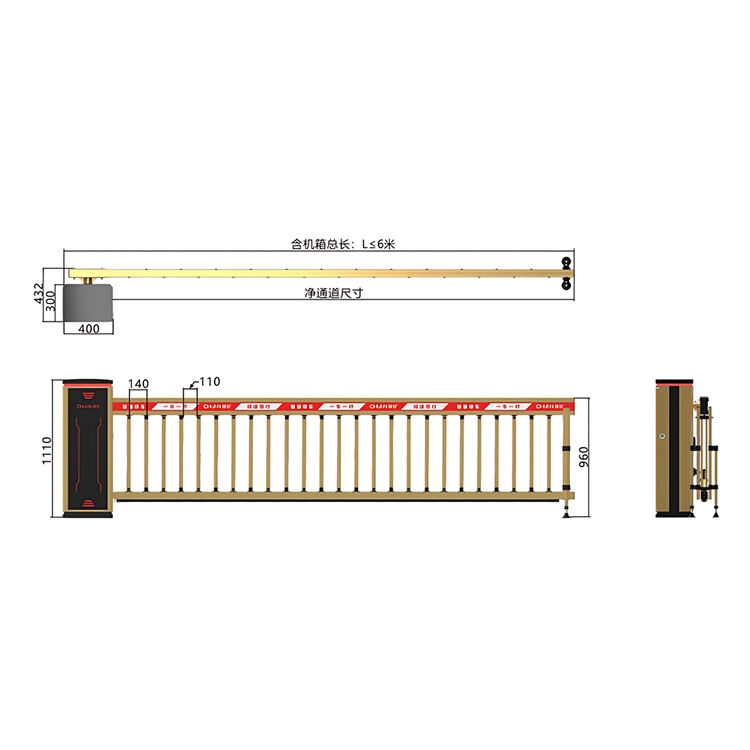

| Chassis size | 400*300*1110MM |
| maximum length | Fence rod ≤6000 MM |
| Distance between the vertical bar of the fence | 110MM |
| Input voltage | AC220V±10%, 50HZ |
| Motor parameters | DC24V, 170W(brushless) |
| Motor structure | Integrated full gear reduction mechanism |
| Speed range | 3-6S adjustable |
| Remote Control distance | ≤30meters/430M (Encryption anti-interference) |
| Interface Signal | on-off signal |
Other Names
Fence gate / Barrier gate with fence Barrier gate / Car stopper / Railing machine /Vehicle Park Lot /Parking lot barrier gate/vehicle access control system/fast speed gate /brushless motor/ Parking Safety Traffic Boom/ Automatic Boom/ Automatic Vehicle Parking Garage / Car Parking Ticket Machine /Commercial Center/
Purpose
1.Controlling the entry and exit of vehicles in the parking lot: This is the most basic function of a barrier gate, which allows or prevents vehicles from entering or leaving the parking lot by controlling the lifting and lowering of the gate rod.
2. Managing pedestrian walkways: In some occasions, such as office buildings, residential areas, hospitals, schools, etc., turnstiles can be used to manage pedestrian walkways by combining with access control systems to control the entry and exit of personnel.
3. Applied to special events: In special events such as conferences, exhibitions, etc., barriers can be used to control the entry and exit of personnel, improving the organizational efficiency of the event.
4. Advertising promotion: The advertising barrier supports screen printing to promote the brand, promote sales, and increase sales through screen advertising.
5. Security management: Barrier gates can be combined with license plate recognition systems, payment systems, etc. to improve the security and management efficiency of parking lots.
1. 13 Years of Manufacture
2. Reasonable Price
3. Top leading Manufacturer in China
4. ODM/OEM Services
5. Fast After-sales Response
6. Durable Quality
Shenzhen Chian, a company specializing in intelligent entrance/exit control, provides you with the best quality automatic gates and license plate recognition devices
No. 11, Lingwu Industrial Road, Niuhu Community, Guanlan Sub-district, Longhua District, Shenzhen City, Guangdong Province, China
