Rising Hydraulic Bollards Security Automatic Anti-Terrorism 304 stainless steel

Rising Hydraulic Bollards Security Automatic Anti-Terrorism 304 stainless steel

Heavy Duty Automatic Bollard with Hydraulic Drive, 304 Stainless Steel Construction and IP68 Protection for Parking, Commercial Entrances and Restricted Vehicle Areas

Overview
Description
Specifications
Quick Detail
Competitive Advantage
Recommended Products

Overview

Place of Origin:	Shenzhen .China
Brand Name:	Chi'an
Model Number:	805
Certification:	ISO9001
Minimum Order Quantity:	1
Packaging Details:	Carton Package
Payment Terms:	Received 50% deposit, arranged production, and paid the remaining amount before delivery
Supply Ability:	50 units/day

Description

★ After being hit by a vehicle carrying 8 tons, it can be used normally.

★ fter passing through a vehicle weighing 100 tons, it can be used normally.

★ Good waterproof performance, can still be used normally after soaking in water.

★ The structure is sturdy and durable, with a large load-bearing capacity, smooth movement, and low noise.

★ Controlled by a micro controller, the system operates stably and reliably, making it easy to integrate.

★ The lifting column and other equipment such as barrier gates can be linked and controlled, or combined with other equipment to achieve automatic control, such as license plate recognition.

★ In the event of a power outage or malfunction, if the lifting column needs to be lowered while in the raised state, it can be lowered to the ground level by pressing the control box button.

★ Using 5CM wide reflective film, the reflectivity can reach over 90%.

★ Adopting internationally leading hydraulic drive technology, the entire system has high safety, reliability, and stability.

★ Remote control device. By wireless remote control, its lifting and lowering can be remotely controlled within a range of about 30 meters around the controller (depending on the wireless communication environment on site).

★ Panel flange thickness 6mm. column top flange thickness 6mm.

★ Accepting non-standard customization (diameter 168mm. 273mm. 325mm. Height 800mm. 1000mm. 1 200mm. Original degree 8mm. 10mm. 12mm.20mm).

Specifications

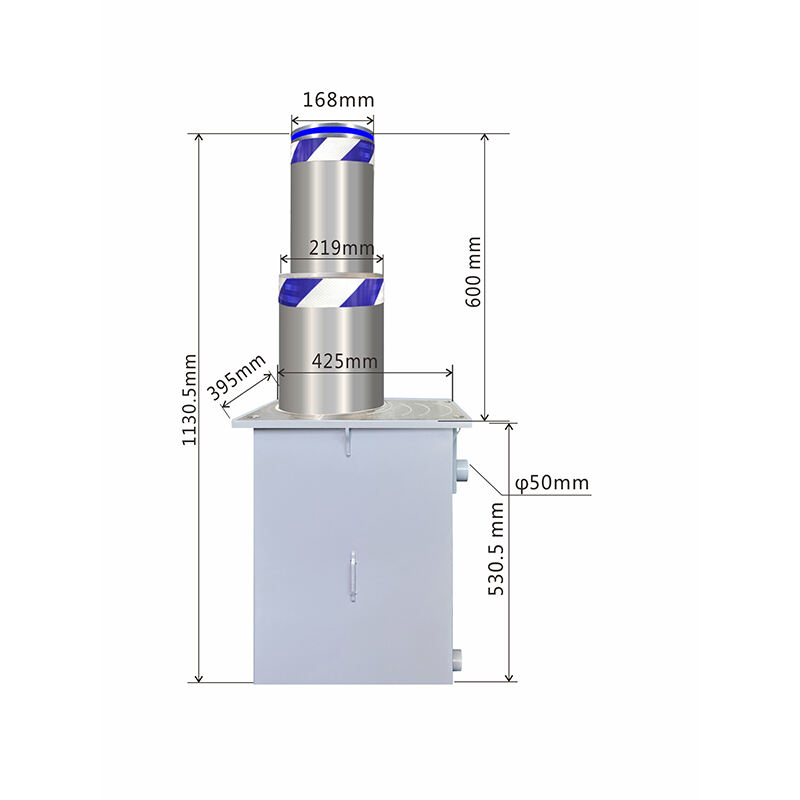

Technical parameters of 805
System control	Electric hydraulic
Stainless steel column diameter	219mm+168mm
Column outer box specification	pre embedded depth 530mm * length 425mm * width 395mm
Rising height	600mm
column thickness	6mm
Cover plate thickness	8mm
Material	304 stainless steel
Weight	Approximately 68KG
Waterproof and dustproof rating	IP68
Anti collision level	4 guide pillars, k6 (equivalent to an impact of 60KM/h, the vehicle is stopped and the equipment works normally)
Under pressure	a 60 ton container truck can pass through.
Rising speed	≤ 4S, descending speed: ≤ 2S
Power supply:	220V, power: 300W
Working temperature	-35 ℃~75 ℃ (suitable)
Storage environment	-10 ℃~65 ℃, rain, moisture, and dust resistant

Quick Detail

Automatic Hydraulic Operation

Integrated electro-hydraulic drive provides automatic rising and lowering for controlled vehicle entrances.

304 Stainless Steel Construction

219 mm bollard diameter with 6 mm wall thickness provides a durable structure for outdoor vehicle access applications.

IP68 Protection

Designed for outdoor installation with protection against dust and water ingress.

Fast Rising and Lowering

Rising time ≤4 seconds and lowering time ≤2.5 seconds for efficient vehicle access management.

Emergency Lowering Function

The bollard can be manually lowered during power failure or emergency situations according to the configured control system.

Access Control Integration

Supports integration with vehicle access systems such as ANPR license plate recognition, RFID readers, remote control and other external control devices.

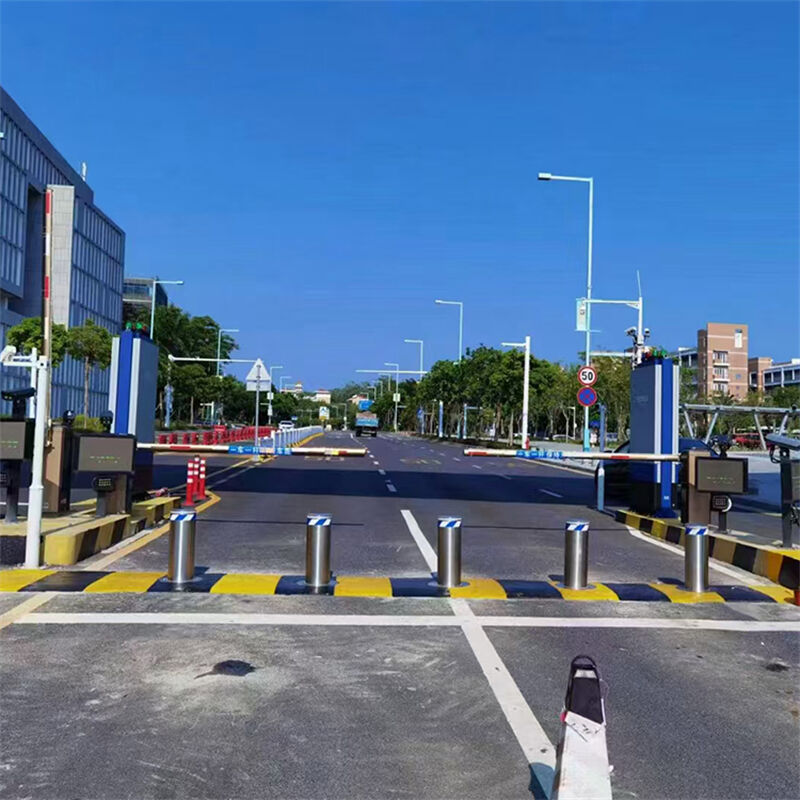

Wide ApplicationSuitable for commercial buildings, parking entrances, industrial facilities, restricted vehicle areas and other controlled access points.
