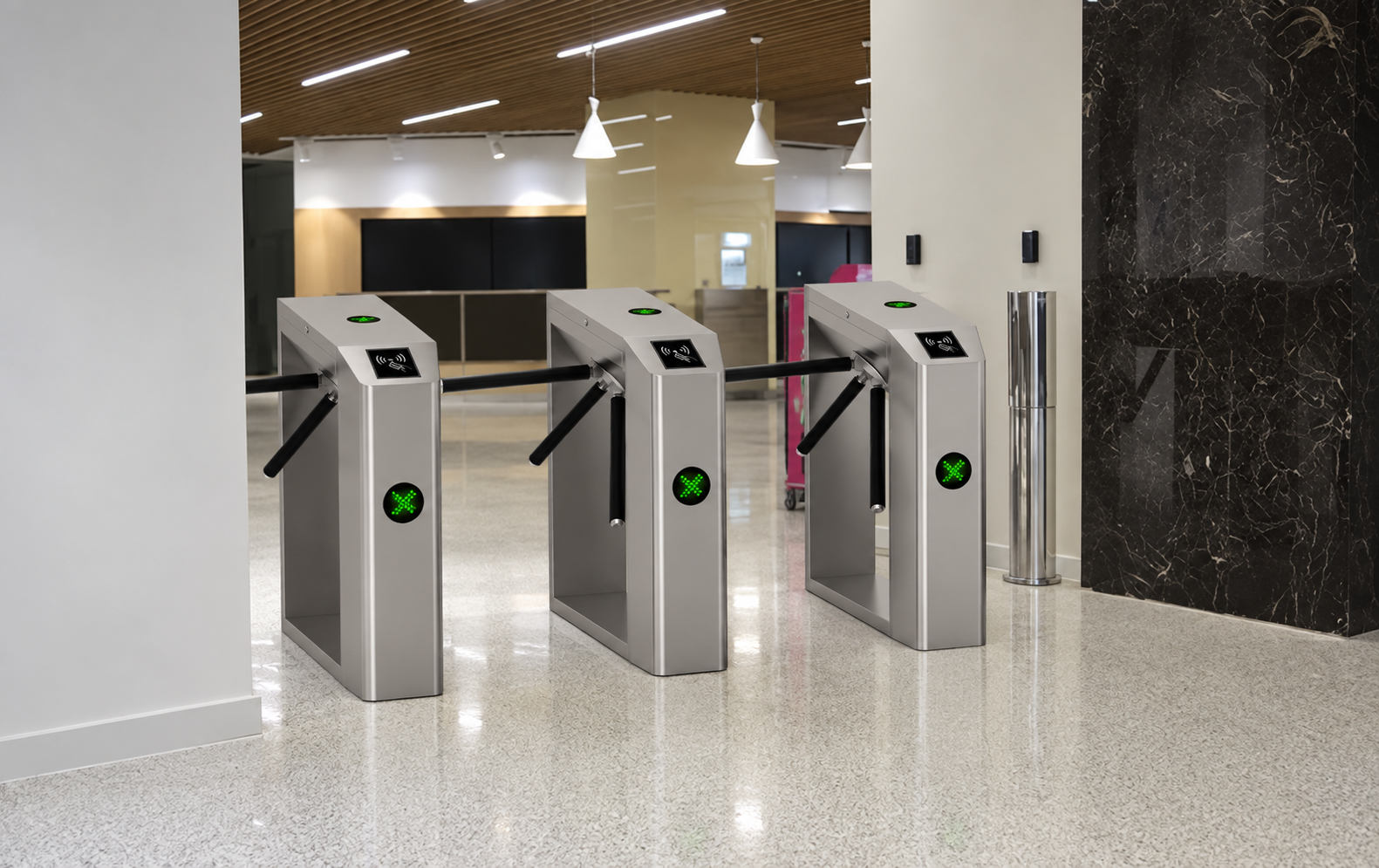

Automatic Tripod Turnstile Gate with RFID Card Reader for Pedestrian Access Control

Automatic Tripod Turnstile Gate with RFID Card Reader for Pedestrian Access Control

Stainless Steel Tripod Turnstile for RFID Card QR Code and Face Recognition Integration, Suitable for Offices, Factories, Stations and Public Entrances

Overview
Product Description
Specifications
Matters Needing Attention
Recommended Products

Overview

Place of Origin:	Shenzhen .China
Brand Name:	Chi’an
Model Number:	TD117A Tripod Turnstile
Certification:	ISO9001
Minimum Order Quantity:	1
Packaging Details:	Carton Package
Payment Terms:	Received 50% deposit, arranged production, and paid the remaining amount before delivery
Supply Ability:	50 units/day

Product Description

304 Stainless Steel Construction

Corrosion-resistant stainless steel body designed for durable indoor and outdoor pedestrian access applications.

Automatic Tripod Mechanism

Supports controlled pedestrian passage with automatic arm operation and access authorization.

Anti-Tailgating Control

Designed for one-person-per-access authorization to improve entrance management.

Multiple Access Control Integration

Supports RFID/IC cards, QR code, fingerprint and face recognition devices.

Emergency Access

Tripod arms can release during power failure or emergency conditions, depending on configuration.

Specifications

Tripod Turnstile Gate	TD117E
Body Size	L1200 * W280 * H980mm;
Material	304 stainless steel,1.2mm upper cover, 0.8mm body;
Structure	Frame structure/standard stainless steel shell;
Length of the Gate Arm	500mm, the width of the channel is 550mm;
Brake lever steering	supports one-way and two-way (optional);
Working environment	Indoor, outdoor;
Power supply voltage	AC220V ± 10%, 50Hz;
Working environment temperature	-30 ℃ to+70 ℃;
Relative humidity	Relative humidity ≤ 95%, non condensing
Input interface	12V level signal or 12V pulse signal with pulse width>100ms, driving current:>200mA
Communication interface	RS485 electrical standard;
Traffic speed	≤ 35 people/minute;
Extended functions	Can be connected to external ID, IC card, fingerprint recognition,facial recognition, finger vein recognition, QR code recognition, ID card recognition, mobile app opening, human body comprehensive anti-static equipment, security checkpoint, visitor system, etc.

Matters Needing Attention

One of the main components of pedestrian walkway products is stainless steel, which has good rust resistance (ability to resist atmospheric oxidation) and corrosion resistance (ability to resist corrosion in media containing acid, alkali, and salt), but its corrosion resistance will change with its own chemical composition, usage environment, and other factors. In order to maintain the appearance and prolong the service life of stainless steel, regular maintenance and upkeep are necessary.
The maintenance precautions are as follows:
1. Different specifications of stainless steel need to be selected for different usage environments. Generally, 304 stainless steel can be used, while 316 stainless steel is recommended for environments such as coastal areas and chemical plants.
2. Keep the surface of the product clean and dry.
When dirt appears on the surface of the product, non-woven fabric and alcohol can be used for cleaning.
When rust spots appear on the surface of the product, you can use a scouring pad (remember not to use a steel wire cleaning ball) to wipe back and forth along the pattern at the rust spot until it is removed, and then use non-woven fabric and stainless steel maintenance agent to wipe the entire area.
5. It is necessary to regularly wipe and maintain the entire gate with non-woven fabric and stainless steel maintenance agent. It is generally recommended to do it once a month; If the environment is harsh (such as by the sea, chemical plants, etc.), it is recommended to do it once a week.
