Ground Sense Vehicle Detection Inductor Anti-crash Car Sense Intelligent lane Brake

Overview

Product Description

1.DLD-500 is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles.

2.The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots

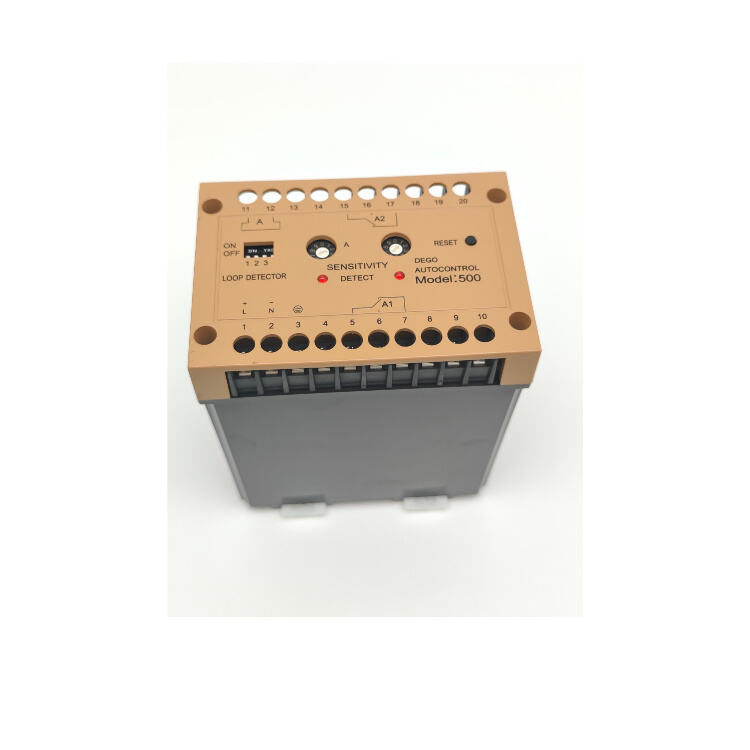

3.Adjustable sensitivity：the sensitivity adjust button is the rotary encoder switch on the panel,"0" with low sensitivity and "9" high sensitivity

Specifications

• Type: DLD-500（single channel）
• Operating voltages： 220V AC±10%
• Power consumption： ＜5W
• Output： Relay output
• Frequency range： 20kHz to 170kHz (4 grades adjustable)
• Reaction time： 20 ms
• Sensitivity： 10 grades adjustable
• Loop inductance: Ideal 100～300µH (include connecting wiring)
• Max 50µH～1000µH (include connecting wiring)
• Loop conn. Wiring: Max.100m, twisted at least 20 times per meter, Total resistance <10 Ohm
• Operating temp.: -30℃ to +75℃
• Storage temp.: -40℃ to +85℃
• Relative humidity: ≤ 95%
• Connection: 11-pin socket

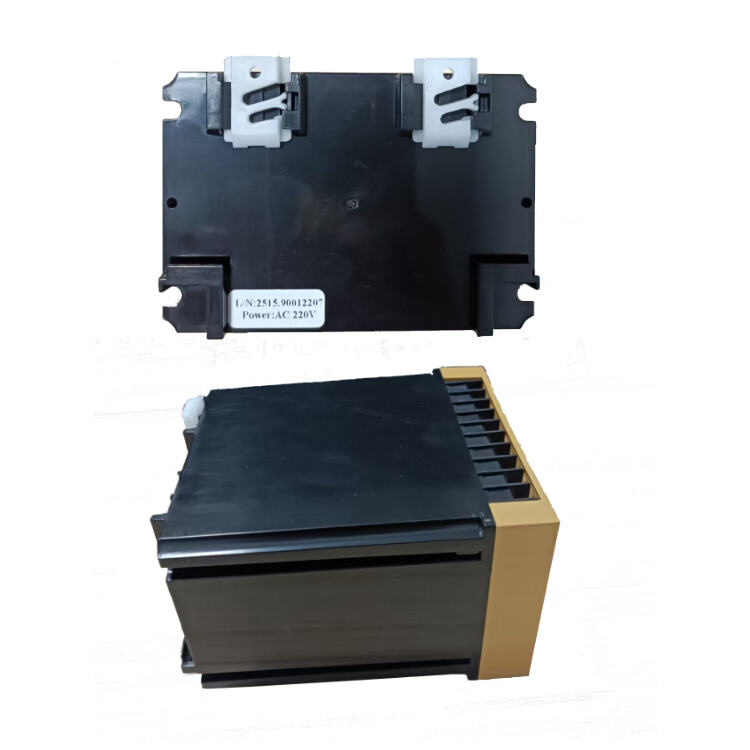

• Shell: PC + ABS engineering plastics
• Installation: DIN rail
• Dimensions: 110×60×100 mm (L×W×H)
• Net Weight: 400g (include socket)
