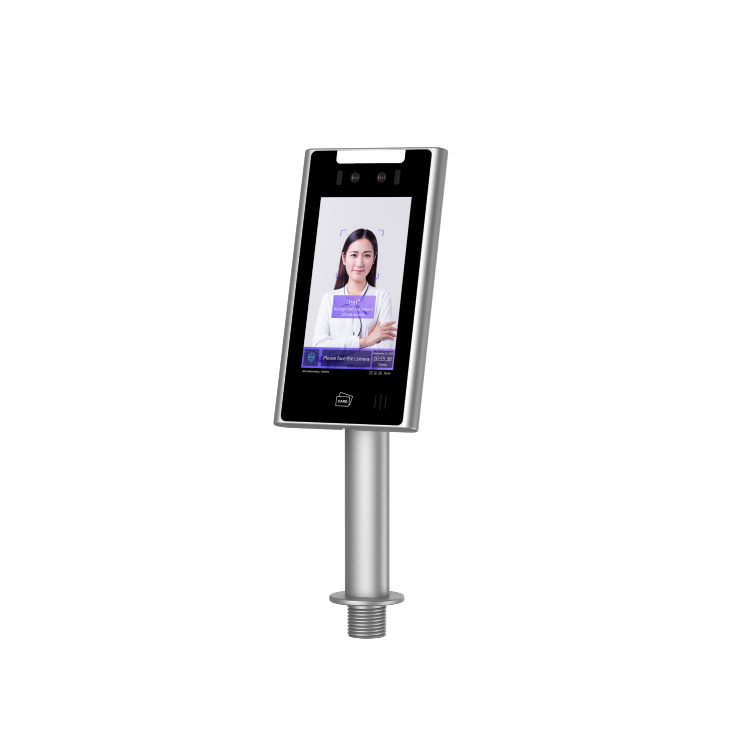

Dynamic Face Recognition Access Control Terminal Attendance System Biometric Facial Recognition

The terminal integrates the functions of off-line face recognition, identity verification, on-site face collection, blacklist early-warning, photo taken after passing, active object detection. It adopts WDR HD face recognition camera, which is fully adapted to harsh environment such as strong light, back light and weak light, with characteristics of fast recognition speed, high accuracy and large list storage capacity.

  • Overview
  • Product Description
  • Specifications
  • Recommended Products
Overview

Place of Origin:

Shenzhen .China

Brand Name:

Chi’an

Model Number:

TD203-12 Speed Gate Turnstile

Certification:

ISO9001

Minimum Order Quantity:

1

Packaging Details:

Carton Package

Payment Terms:

Received 50% deposit, arranged production, and paid the remaining amount before delivery

Supply Ability:

50 units/day

Product Description
  • Two million pixel binocular system, supporting wide dynamic range, suitable for face recognition in complex scenes such as low light, forward light, and reverse light
  • Support binocular liveness detection to prevent photo/video attacks and effectively prevent illegal entry
  • Multiple authentication methods, supporting residents' facial recognition, swiping IC/ID cards, and multiple password opening methods, ensuring security while making passage more convenient
  • Support self-service face collection and batch import of lists, making list management more efficient
  • Supports 4G network, suitable for scenarios where networking is inconvenient
  • Equipped with standby mode, reducing power consumption and extending service life
  • Equipped with anti disassembly buttons, the device can trigger an alarm if it is moved or disassembled, providing comprehensive protection for equipment safety
  • 5W ultra large single database, suitable for a wider range of scenarios
  • Up to 100000 data storage records (including images, cyclic writing)
  • Support local publishing of image advertisements or notifications, extremely convenient
  • Support for upgrading devices through management software programs, with simple and convenient maintenance
  • The interface of the device is very rich and open, supporting secondary development docking
Specifications

Product model

608B

Basic parameters

Installation scenarios

Gate installation

Operating temperature and humidity

-10ºC to 55ºC, <90ºC RH

Protection level

IP55

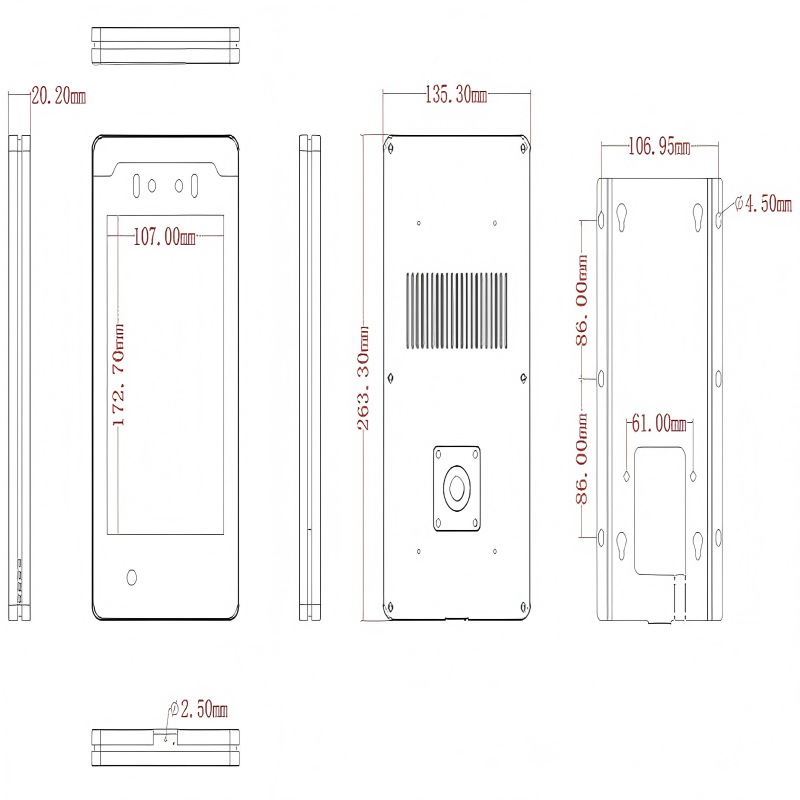

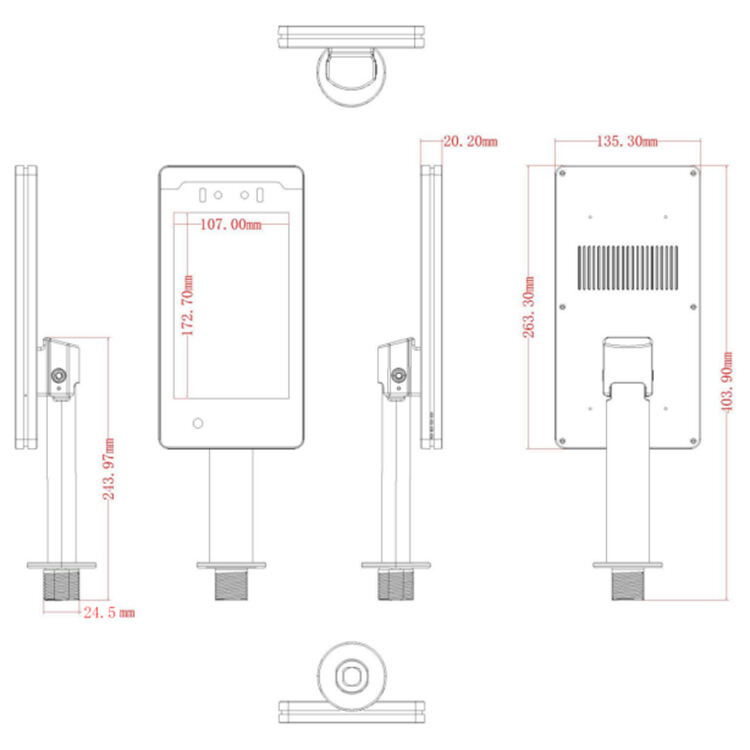

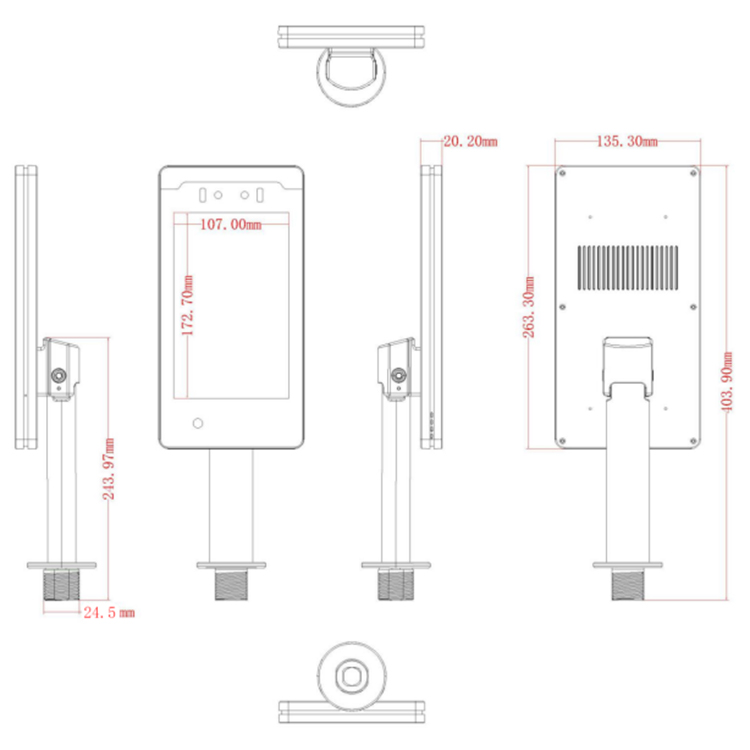

Dimensions

403.9*135.3*20.2mm(Height*Width*Thickness)

Material

Aluminum alloy

System parameters

System

Embedded Linux system

CPU

ARM-based processors

Storage

Internal storage 1GB, data storage 8GB

Display screen

8’’ HD IPS LCD with resolution of 800*1280

Lens focus

4.5mm

Camera

Binocular camera, 200W pixels with WDR

Recognition performance

Recognition distance

0.3-3m

Recognition time

Less than 0.2s

Storage capacity of face database

1: N, N≤50000

Accuracy

≥99.7%

Peripheral interface

Power interface

1 x DC12V

USB interface

1x USB2.0

Relay output

1 x on-off output

RJ45 cable interface

1 x RJ45 Internet access

Wiegand output interface

1 x WG output

IO input

1 x IO input
