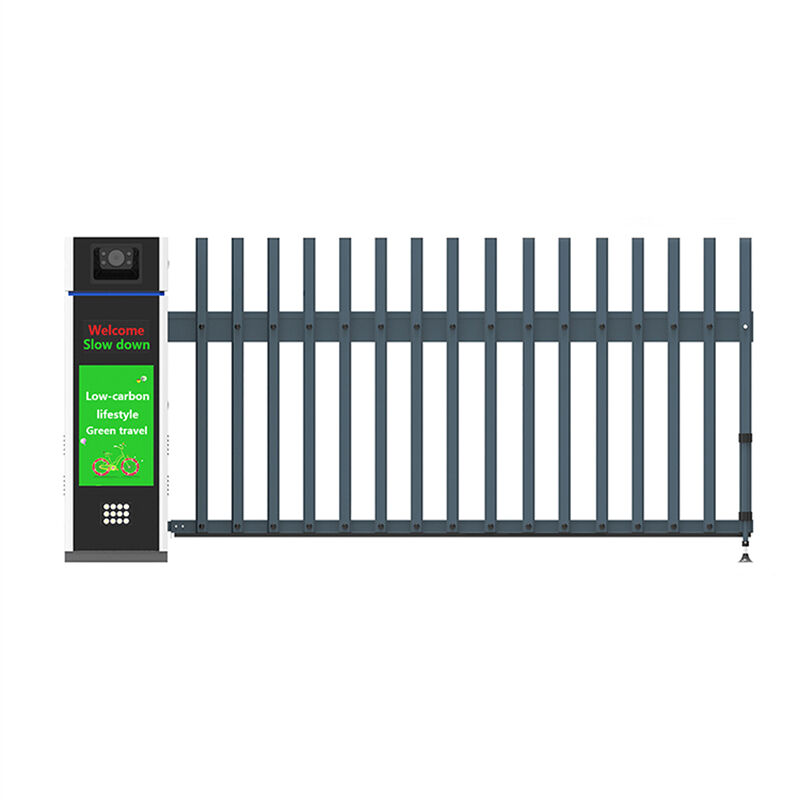

Integrating the barrier gate and license plate recognition design into one device reduces installation time, saves labor costs, is easy to install, and can be used simply by plugging in
| Place of Origin: | Shenzhen .China |
| Brand Name: | Chi'an |
| Model Number: | 127Y |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton Package |
| Payment Terms: | Received 50% deposit, arranged production, and paid the remaining amount before delivery |
| Supply Ability: | 50 units/day |
●The integration of barrier gates and license plate recognition into one device significantly reduces installation time
●Full mold aluminum alloy material, with a highly technological design.
300W high-definition license plate recognition camera with clearer image quality, 6mm fixed focus lens, supporting 3D adjustment of camera angle.
●Intelligent imaging adjustment, automatic tracking and adaptation to changes in lighting, better cope with harsh scenes such as forward, backward, and ultra-low illumination.
● Large angle recognition, with a wider range of scene adaptation.
● LED dual color high brightness display screen, making the payment page more intuitive.
● Support unlicensed vehicles to scan the lane QR code for entry and exit, and self-service scanning and payment for vehicle exit.
Humanized voice playback, with the ability to set different levels of volume playback in different time periods.
● The camera is equipped with an offline unit for whitelist offline access.
Only one Ethernet cable and one power cord are needed, and it can be used immediately after power on, with simple installation and debugging.
| Technical parameters of 127Y | |

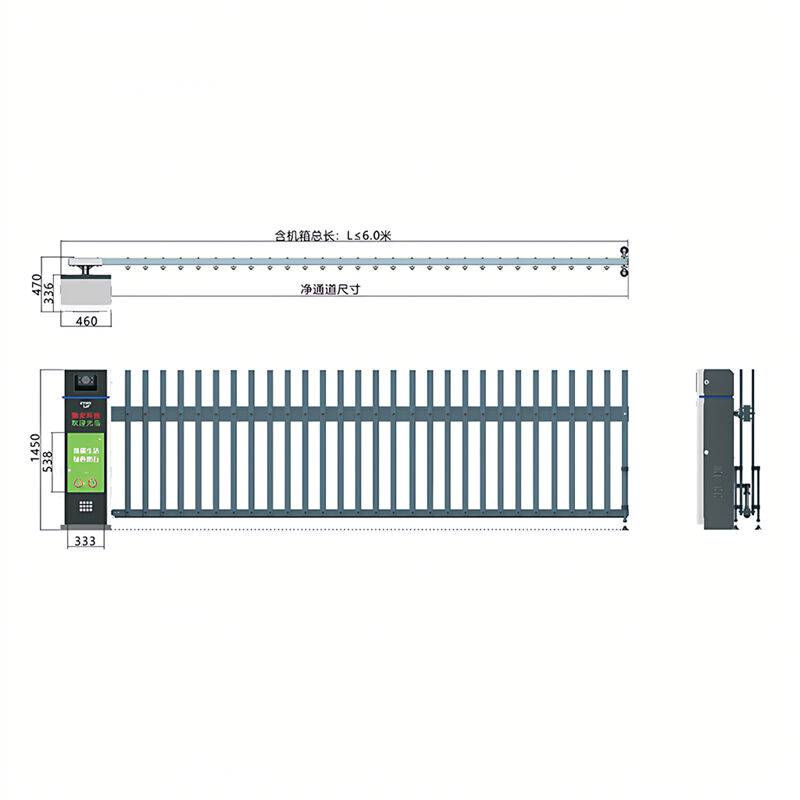

| Chassis size | 400*300*1472 MM |
| maximum length | ≤6000MM |
| Input Voltage | AC220V±10%, 50HZ |
| Motor parameters | DC24V, 170W(brushless motor) |
| Motor structure | Integrated gear reduction movement |
| Speed range | 3-6S adjustable |
| Remote Control distance | ≤30meters/430M (Encryption anti-interference) |
| Interface Signal | on-off signal |
| Technical parameters of LPR | |
| License plate recognition rate | Day≥99.9% Night≥99.7% |
| Pixels | 3MP |
| Recognition distance | 3-6 meters |
| Adapt to the speed range | 0-40Km/h |
| Recognition angles | ≤45° |
| Working temperature | -25℃~60℃ |
| Relative humidity | ＜90%(No condensation) |
| Communication interface | TCP/IP RS485 |
| Fill light | Intelligent photosensitive control, Controls the fill light on or off based on the intensity of the light |
Other Names
Fence gate / barrier gate with fence / Car stopper / Railing machine /Vehicle Park Lot /LED barrier gate /Parking lot barrier gate/fence rod /vehicle access control system
Purpose
1.Controlling the entry and exit of vehicles in the parking lot: This is the most basic function of a barrier gate, which allows or prevents vehicles from entering or leaving the parking lot by controlling the lifting and lowering of the gate rod.
2. Managing pedestrian walkways: In some occasions, such as office buildings, residential areas, hospitals, schools, etc., turnstiles can be used to manage pedestrian walkways by combining with access control systems to control the entry and exit of personnel
3. Applied to special events: In special events such as conferences, exhibitions, etc., barriers can be used to control the entry and exit of personnel, improving the organizational efficiency of the event

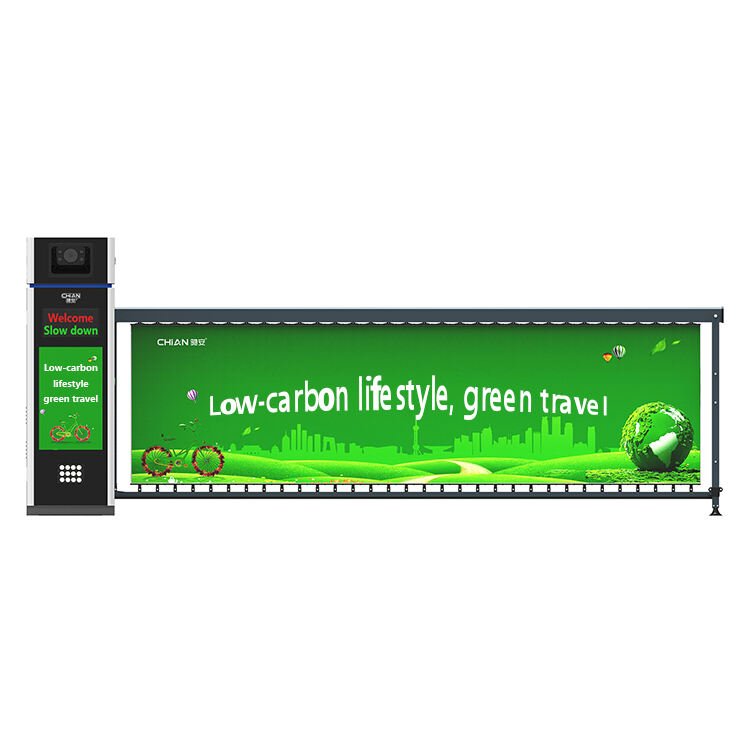

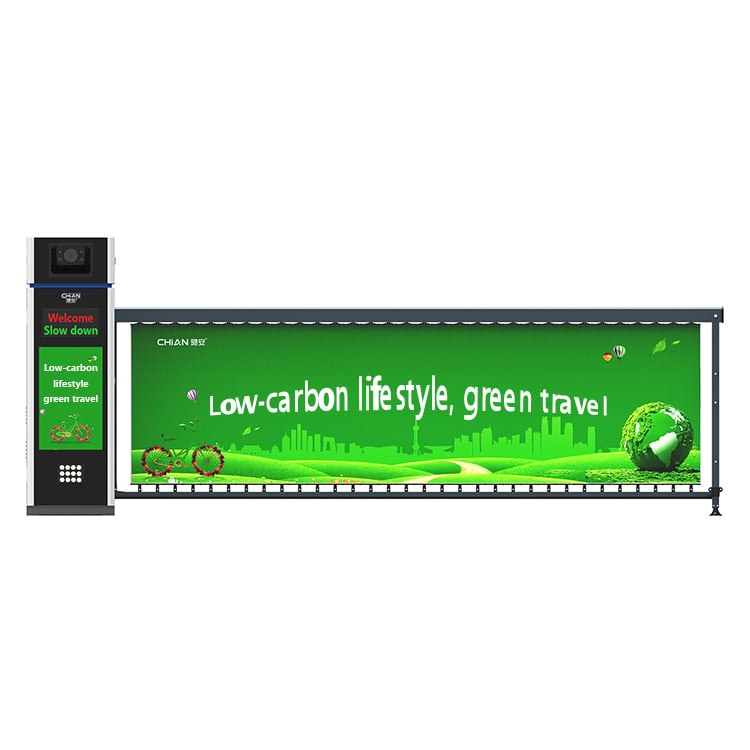

4. Advertising promotion: The advertising barrier supports screen printing to promote the brand, promote sales, and increase sales through screen advertising
5. Security management: Barrier gates can be combined with license plate recognition systems, payment systems, etc. to improve the security and management efficiency of parking lots.
