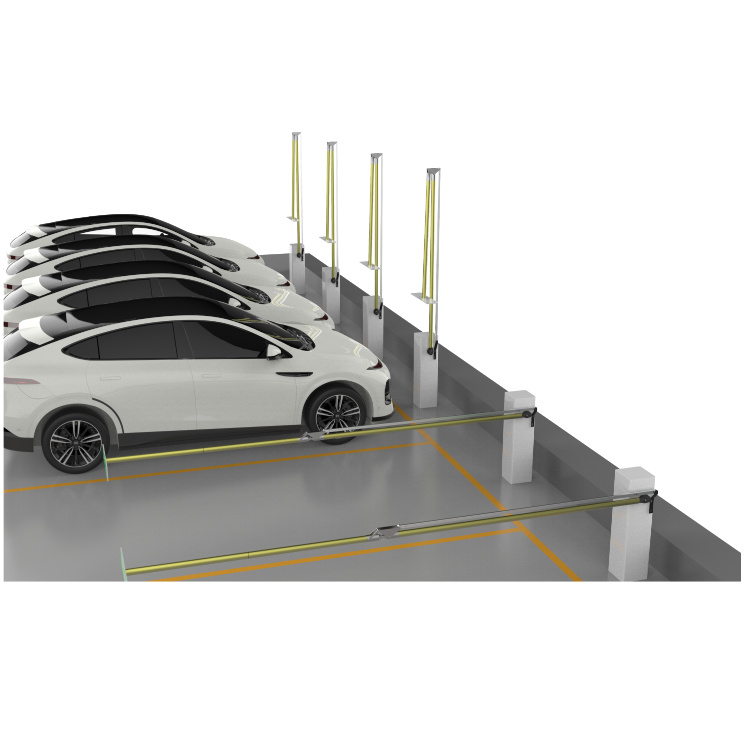

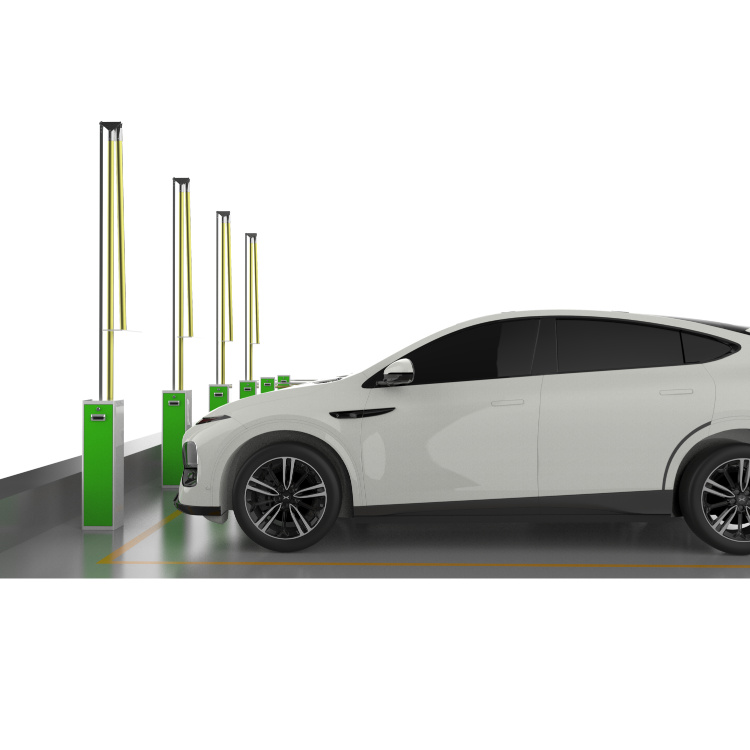

In the charging scenario of new energy vehicles (such as electric vehicles), the application of parking barrier gates is particularly important, mainly used for charging parking space management to solve problems such as fuel vehicle occupancy, charging resource allocation, and efficiency improvement,Applicable to: public charging stations (shopping malls, highway service areas, residential/office charging areas, dedicated charging parking lots (such as taxi and logistics vehicle charging stations), private exclusive parking spaces
Place of Origin: |
Shenzhen .China |
Brand Name: |
Chi’an |
Model Number: |
P300 |
Certification: |
ISO9001 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Carton Package |
Payment Terms: |
Received 50% deposit, arranged production, and paid the remaining amount before delivery |
Supply Ability: |
20 units/day |
1. Powered by 24V safe voltage, breaking the traditional 220V, the product is safer
2. Small size, with dimensions consistent with the standard parking line width, does not take up space
3. Brushless DC motor, low power consumption, high efficiency, motor never heats up, can run continuously for a long time
4. Standard 485 communication and switch signal.
5. Reserved interface, can be used in conjunction with radar, vehicle inspection, etc
6. Color, green, white (red, blue, yellow black can be customized)
7. Supports all types of rods
8. Folding arm with acrylic advertising light board (content can be designed and adjusted by oneself)
9. Landing gear mode, remote control, motherboard buttons, RF camera, 485, ordinary switch signal
10. Dual spring configuration, power off without dropping the rod,
11. Main pole accessories, mold integrated molding, using high-strength PC+nylon material to ensure strength and toughness
12. The main pole fixture adopts a mold+steel sleeve integrated molding, with high strength, beautiful and generous appearance
13. The main pole comes standard with traffic light strips and anti smashing rubber strips,
Technical parameters |
|
Chassis size |
260*260*980 |
Working voltage |
DV24/10A |
Operating lifespan |
5 million cycles |
Motor speed |
1500r/min |
Surface treatment |
Powder baking paint |
Steel plate thickness |
sufficient thickness of 1.5 millimeters, approximately 1.7 after spraying |
Motor |
100W |
Working temperature |
-25 degrees+60 degrees |
Communication method |
485 communication, switch quantity |
LED light power supply |
24V10A |
Support pole types |
straight pole, folding pole 90 degrees, folding pole 180 degrees |
Rod type specification |
Golden elliptical rod 50 mm* 35mm |
Landing gear speed |
adjustable from 1.5-6 seconds |
Control system |
Integrated control motherboard dedicated to parking brake |
External power supply |
220V 50/60HZ |
