90 Degree Folding Arm Barrier Gate for Underground Parking

Overview

Specification	Value
Product Type	90° Folding Arm Boom Barrier Gate
Input Voltage	DC24V
Motor Power	150W
Motor Type	DC Brushless Motor
Boom Type	90° Foldable Arm
Opening / Closing Speed	1.5–3s Adjustable or 3–6s Adjustable
Remote Control Distance	≤30 m

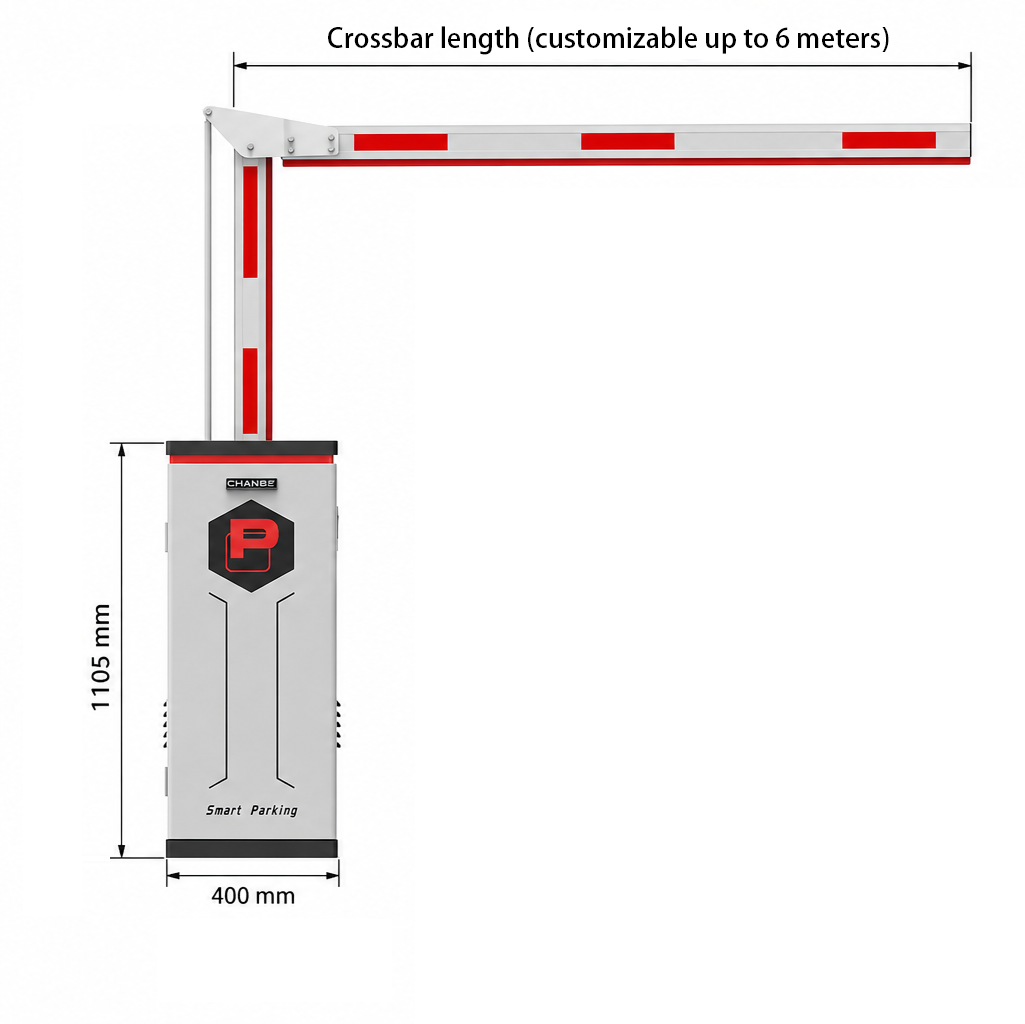

Cabinet Size	400 × 305 × 1105 mm
Protection Rating	IP54
Application	Underground Parking / Low-Clearance Vehicle Entrance

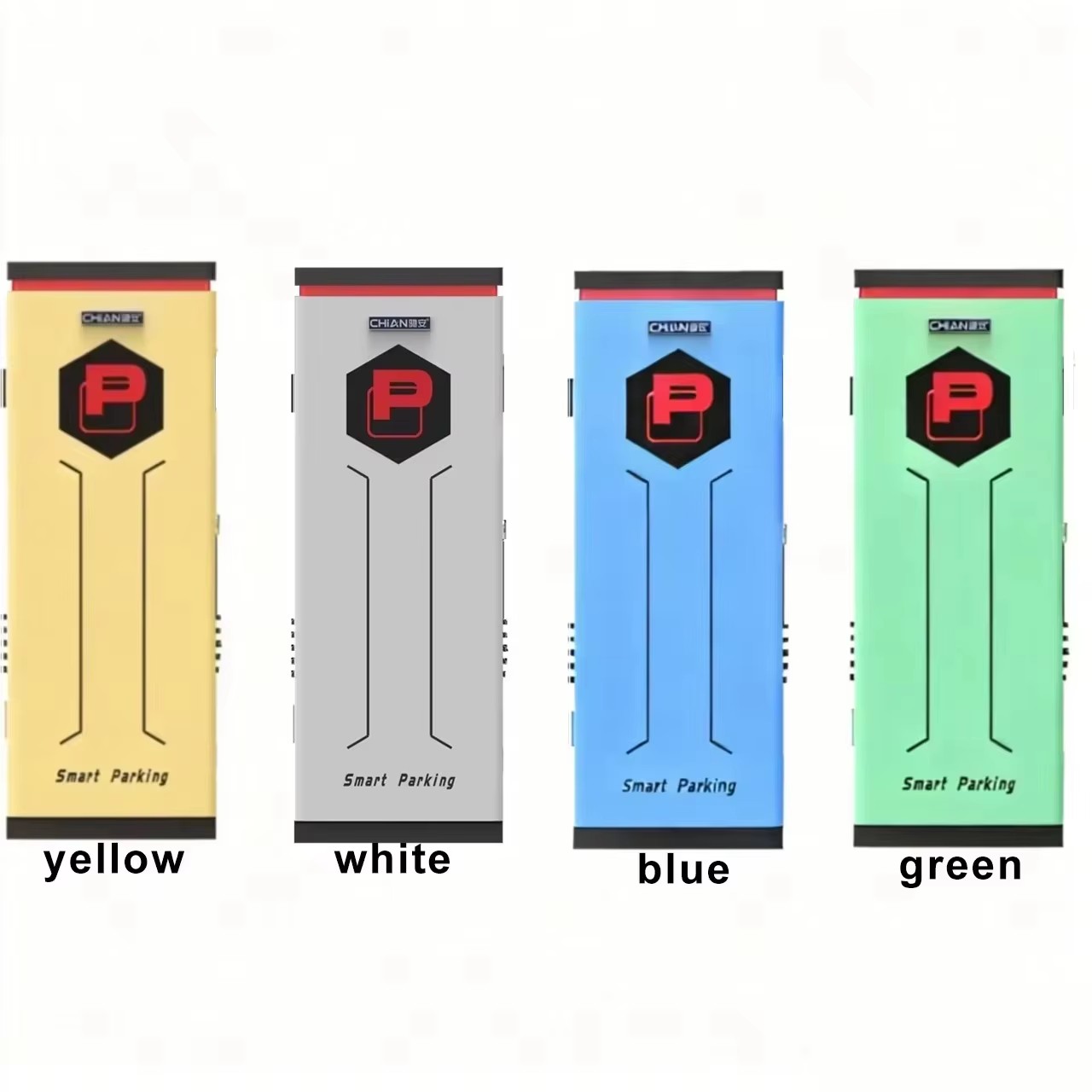

Available Colors	Silver / Yellow / Blue
Certification	CE / ISO9001*

Description

90° Folding Boom for Low-Clearance Entrances

This automatic folding arm barrier gate is specially designed for underground parking garages and vehicle entrances with limited overhead clearance. The 90-degree folding boom structure reduces the vertical space required during opening, making it a practical alternative to conventional straight boom barriers in low-ceiling environments.

150W DC Brushless Motor

Equipped with a 150W DC24V brushless motor, the barrier provides stable and efficient opening and closing operation. The brushless motor design helps reduce maintenance requirements and is suitable for frequent vehicle access applications.

Adjustable Opening and Closing Speed

The barrier supports 1.5–3 seconds adjustable operation or 3–6 seconds adjustable operation, allowing the operating speed to be selected according to different entrance and traffic management requirements.

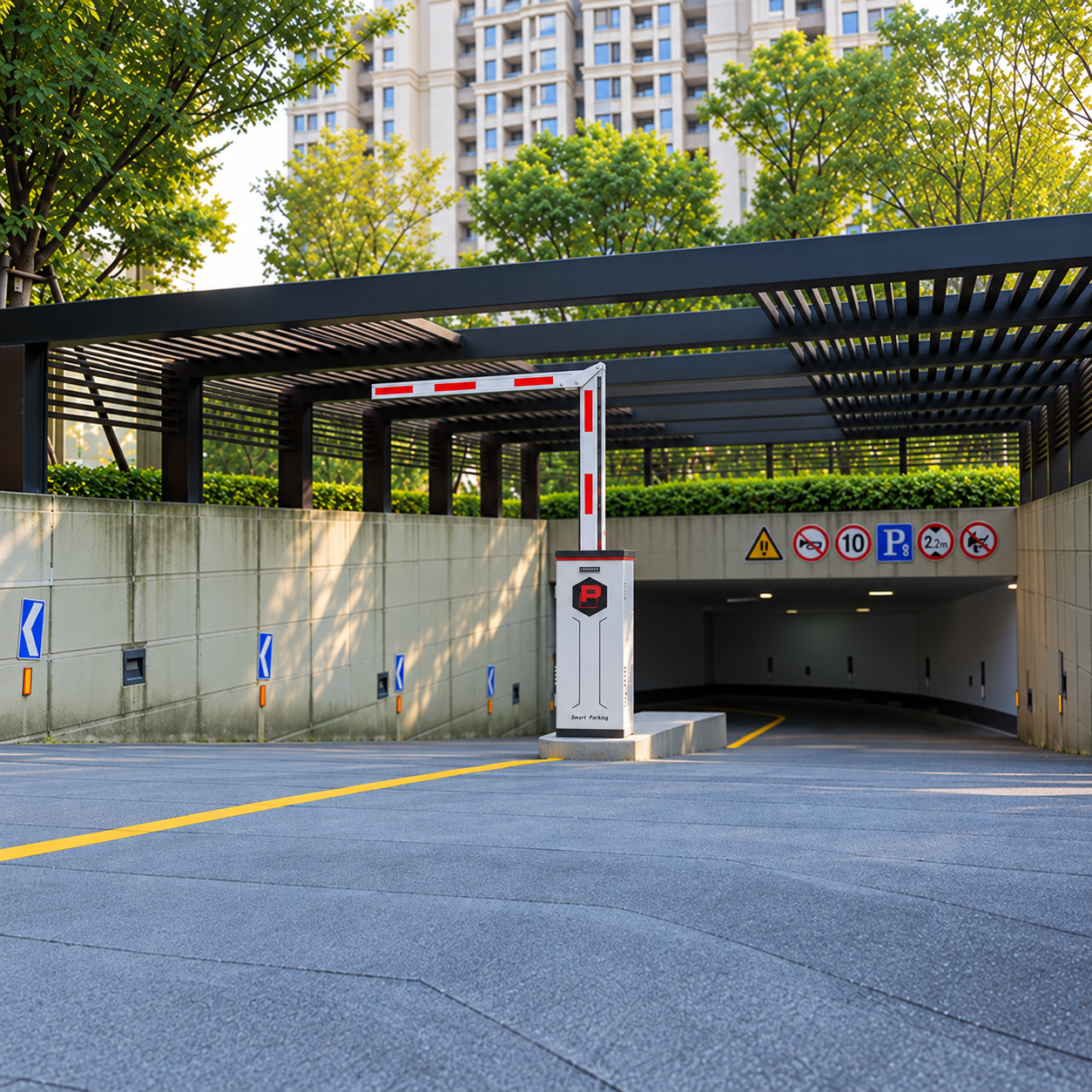

Designed for Underground Parking

Unlike a conventional straight boom that requires more vertical clearance when opening, the folding arm changes its angle during operation to reduce the required overhead space.

This makes the barrier suitable for underground garages, covered parking areas, residential parking entrances, commercial buildings and other height-restricted vehicle entrances.

Remote Control Operation

The barrier supports remote control operation with a control distance of up to 30 meters, providing convenient opening and closing control for parking and property management applications.

Parking Access Control Integration

The folding boom barrier can be integrated with compatible ANPR/LPR systems, RFID readers, access controllers, ground loop detectors and other parking management equipment according to project requirements.

This allows the barrier to operate as part of an automated vehicle access control system while retaining the space-saving advantages of the folding boom design.

Durable Cabinet for Parking Applications

The barrier cabinet measures 400 × 305 × 1105 mm and is designed for parking entrance applications. An IP54 protection rating helps protect the equipment against environmental exposure during normal installation and operation.

Applications

Applications

The 90-degree folding arm barrier gate is suitable for vehicle entrances where overhead installation space is limited, including:

1. Underground parking garages
2. Residential parking entrances
3. Commercial building garages
4. Shopping mall parking areas
5. Office building parking
6. Hotel parking entrances
7. Covered vehicle entrances
8. Low-ceiling parking access lanes

How the Folding Arm Works

How Does the 90° Folding Arm Work?

When the barrier opens, the main boom rises while the connected section folds through the joint mechanism. This reduces the vertical operating space required above the barrier.

When the barrier closes, the folding section extends until the boom returns to its horizontal position and blocks the vehicle lane.

The design allows automatic vehicle access control to be installed in underground garages and covered entrances where a conventional straight boom cannot fully open because of limited ceiling height.
